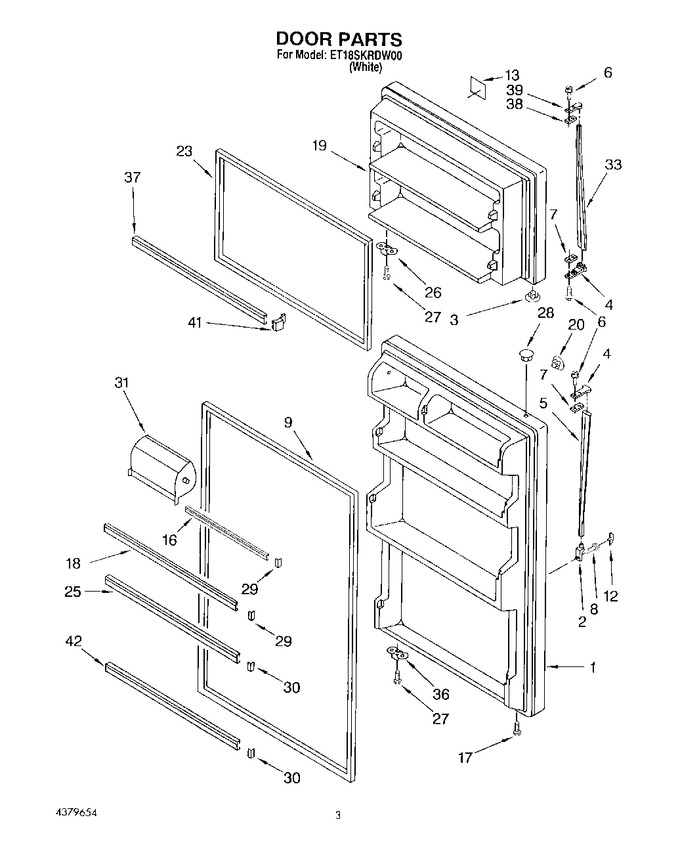

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171269		Refrigerator Door (includes No.9)		Appelez-nous	-
2	819342		End Cap   (Replaces: 2183141)			Immediately	$ 46.18
3	534927		Hole Plug (2)		Appelez-nous	-
4	819342		End Cap, Handle (2)   (Replaces: 9791771)			Immediately	$ 46.18
5	WP2162555		Handle, Center   (Replaces: 2148035)			Immediately	$ 141.86
6	WP488920		Screw   (Replaces: 489006)				$ 7.18
7	943188		Spacer				$ 7.80
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.45
9	2159057		Door Gasket, Magnetic (service)			Immediately	$ 168.76
12	9791769		Cover, Screw				$ 5.70
13	2162781		Nameplate		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2171040)				$ 111.89
17	WP8281206		Screw   (Replaces: 489028)				$ 7.53
18	WP2201061		Trim, Door   (Replaces: 2171142)				$ 111.89
19	2159270		Freezer Door Panel (includes No.23)		Appelez-nous	-
20	WP2189000		Hole Plug   (Replaces: 1122653)			Immediately	$ 6.99
23	2159327		Door Gasket, Magnetic (service)			Immediately	$ 148.12
25	2171140		Trim, Door Shelf		Appelez-nous	-
26	2159367		Bracket, Door Stop		Appelez-nous	-
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
28	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 7.37
29	WP2156007		Plug-trim (4)   (Replaces: 2156007)			Immediately	$ 7.23
30	WP2156006		Plug-trim (4)   (Replaces: 2156006)			Immediately	$ 11.51
31	WP2218113		Door, Compartment   (Replaces: 2170950)			Immediately	$ 45.30
33	WP2162555		Handle, F.c.   (Replaces: 2171043)			Immediately	$ 141.86
36	2159368		Bracket, Door Stop		Appelez-nous	-
37	WP2201061		Trim-door (2)   (Replaces: 2171144)				$ 111.89
38	943187		Shim				$ 25.14
39	819342		Handle End   (Replaces: 9791776)			Immediately	$ 46.18
41	WP2156003		Endcap (4)   (Replaces: 2156003)			Immediately	$ 11.93
42	2184570		Trim, Door		Appelez-nous	-
