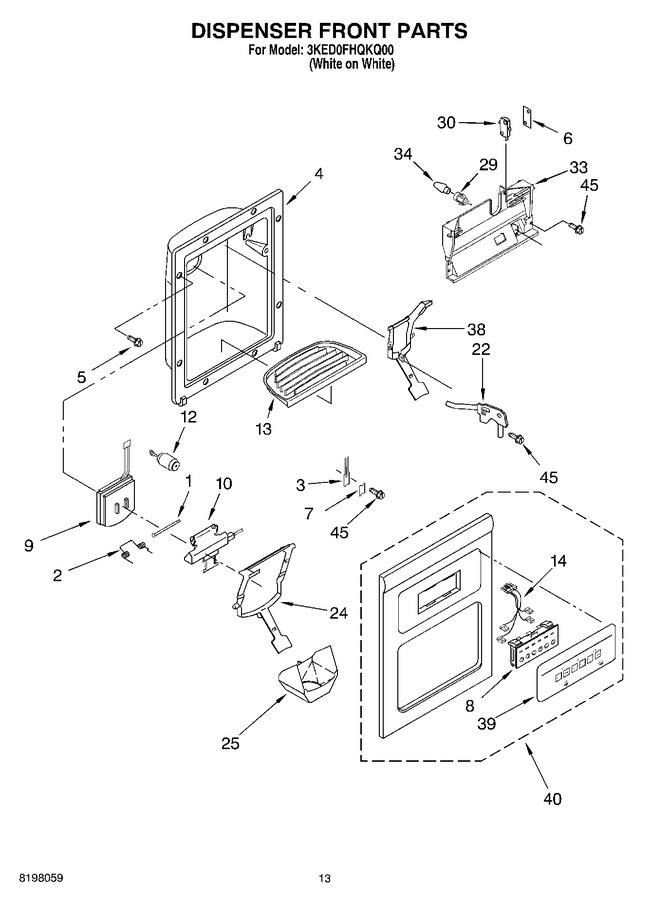

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2196195		Pin   (Replaces: 2196195)				$ 13.78
2	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 78.66
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.12
4	N/A		Housing, Dispenser (not Serviced)		Appelez-nous	-
5	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
6	625834		Spacer, Switch (2)				$ 7.99
7	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.29
9	WP2180353		Door, Ice   (Replaces: 2203886)			Immediately	$ 24.15
10	2206423		Door Mechanism Assembly		Appelez-nous	-
12	2205686		Mechanism Delay		Appelez-nous	-
13	WP2206671W		Grille, Overflow (white)   (Replaces: 2206671W)				$ 64.95
14	2311650		Wire Assembly   (Replaces: 2187409)				$ 84.74
22	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: 2209718)				$ 126.76
24	2195089W		Lever Assembly, (white Ice Dispenser)		Appelez-nous	-
25	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.02
29	2180200		Lamp Holder				$ 93.23
30	WP2162361		Switch (4)   (Replaces: 2162361)			Immediately	$ 25.84
33	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 24.27
34	989331		Bulb, Light		Appelez-nous	-
38	WPW10152858		Lever Assembly, (white)   (Replaces: 2195090W)			Immediately	$ 98.85
40	2214701W		Front Cover Assembly (includes Items 8, 14 & 39) (white)		Appelez-nous	-
45	WP3400906		Screw   (Replaces: 489000)				$ 8.15
