SELECT A DIAGRAM

01 - Cabinet


02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit


07 - Icemaker, Lit/optional

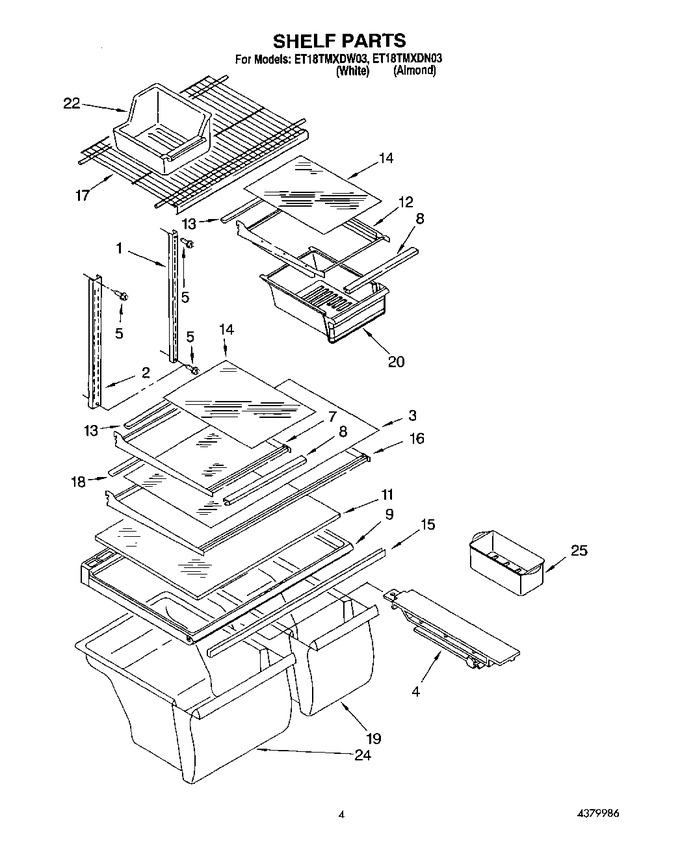

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2172637		Shelf, Ladder (2)		Appelez-nous	-
2	2172638		Shelf, Ladder Center		Appelez-nous	-
3	2166215		Glass, Full Shelf		Appelez-nous	-
4	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 32.83
5	W11544659		Screw   (Replaces: 489415)				$ 12.92
7	2163859		Shelf, Cantilever		Appelez-nous	-
8	2176262		Trim, Shelf		Appelez-nous	-
9	WP2314548		Cover, Crisper   (Replaces: 2174664)				$ 233.85
11	WP2169921		Glass, Crisper Cover   (Replaces: 2174665)				$ 233.04
12	2176305		Pan Shelf, Cantilever		Appelez-nous	-
13	2163882		Retainer, Glass		Appelez-nous	-
14	2166216		Glass, Meat Cover		Appelez-nous	-
15	WP2172748		Crisper Support   (Replaces: 2172541)				$ 91.87
16	2163862		Shelf, Full Cantilever		Appelez-nous	-
17	2172536		Shelf, Freezer		Appelez-nous	-
18	2163884		Trim, Shelf Rear		Appelez-nous	-
19	W10856580		Pan, Crisper   (Replaces: 2170955)			Immediately	$ 159.33
20	WP2218127K		Pan, Meat   (Replaces: 2170956)				$ 132.12
22	W11625904		Ice Cube Pan   (Replaces: 2166261)			Immediately	$ 61.05
24	W10854037		Pan, Crisper   (Replaces: 2170954)			Immediately	$ 161.27
25	W10136387A		Egg Bin   (Replaces: 2166748)				$ 17.59

    View Diagram in Separate Window       Print Part List
