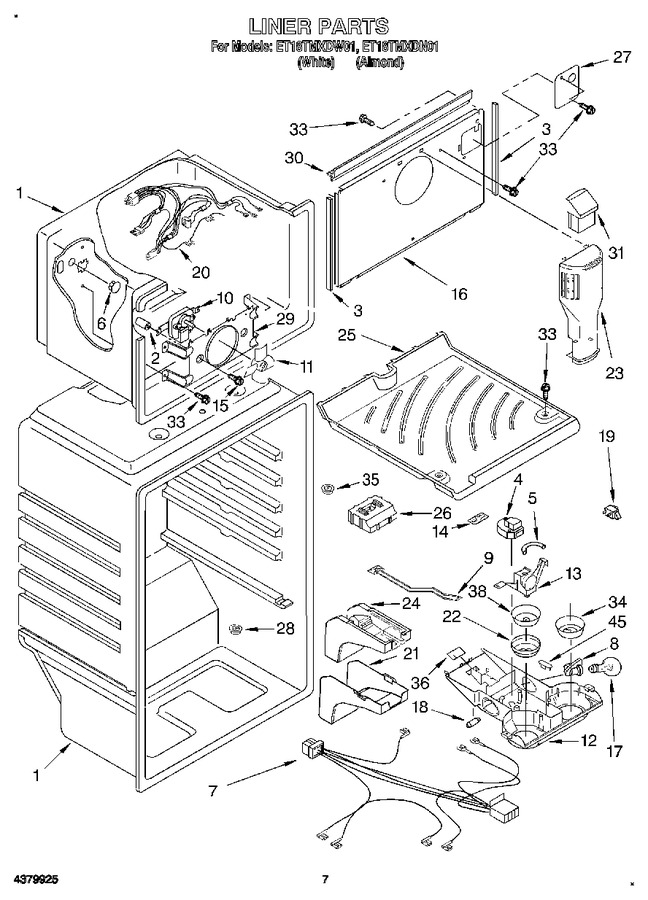

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 531933 | Grommet (2) |
|
$ 5.70 | |||||
| 3 | WP2254360 | Gasket, Evaporator Cover (side) (Replaces: 2166181) |
|
$ 25.31 | |||||
| 4 | W10822278 | Timer, Defrost (Replaces: 2176340) |
|
Immediately | $ 31.00 | ||||
| 5 | WP2196003 | Thermostat Tube Barrier (Replaces: 549512) |
|
$ 7.52 | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 7.23 | |||||
| 7 | 2172542 | Wire Assy. Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 9 | 2179853 | Damper, Air |
|
- | |||||
| 10 | 2176298 | Fan Motor |
|
- | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2163777) |
|
Immediately | $ 96.85 | ||||
| 12 | 2174672 | Control Box |
|
- | |||||
| 13 | 4387562 | Thermostat Assembly (includes Items 5, 18, & 36) (Replaces: 2179794) |
|
Immediately | $ 299.82 | ||||
| 14 | 2176341 | Clip, Defrost Timer |
|
- | |||||
| 15 | 489412 | Screw |
|
- | |||||
| 16 | 2179897 | Cover-evaporator |
|
- | |||||
| 17 | W11679940 | Light Bulb (2) (Replaces: 946059) |
|
Immediately | $ 10.17 | ||||
| 18 | 2163802 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 20 | 2174610 | Wire Assembly, Freezer Compartment |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | 2174668 | Knob, Thermostat |
|
- | |||||
| 23 | 2182340 | Air Tower |
|
$ 43.02 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2176280) |
|
Immediately | $ 117.93 | ||||
| 25 | 2172565 | Freezer Floor |
|
- | |||||
| 26 | 2179877 | Air Diffuser, Top |
|
- | |||||
| 27 | WP2217784 | Cover, Hole (Replaces: 2183049) |
|
$ 42.50 | |||||
| 28 | WP2210509 | Release Valve (Replaces: 2171931) |
|
$ 89.24 | |||||
| 29 | 2163827 | Bracket, Fan Motor |
|
- | |||||
| 30 | WP2254360 | Gasket, Evaporator Cover (top) (Replaces: 2166178) |
|
$ 25.31 | |||||
| 31 | 2174629 | Air Return & Foil Assembly |
|
- | |||||
| 33 | WP489442 | Screw (Replaces: 489438) |
|
Immediately | $ 10.34 | ||||
| 34 | 2174669 | Knob, Damper |
|
- | |||||
| 35 | 2171846 | Release Valve |
|
$ 18.99 | |||||
| 36 | WP2205079 | Seal, Rear Thermostat (Replaces: 2172532) |
|
$ 9.01 | |||||
| 38 | WP2184574 | Gear Wheel, Thermo (Replaces: 2172523) |
|
$ 64.83 | |||||
| 45 | 2174667 | Hole Plug |
|
- |
