SELECT A DIAGRAM

01 - Cabinet


02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit

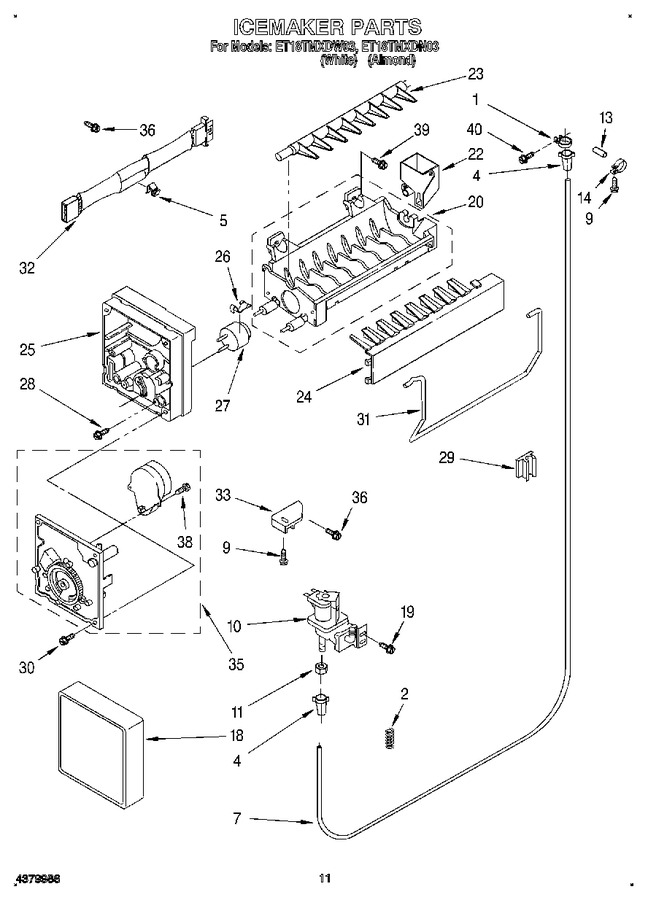

07 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488878		Clamp, Tube   (Replaces: 488878)				$ 10.96
2	2174719		Spring		Appelez-nous	-
4	4387491		Insert, Tube   (Replaces: 2182427)				$ 7.41
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 9.99
7	W10823511		Tube Water   (Replaces: 2174662)			Immediately	$ 29.17
9	WP489478		Screw   (Replaces: 489242)				$ 7.36
10	WP2315576		Valve, Solenoid   (Replaces: 2171999)			Immediately	$ 88.31
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.36
13	2174755		Tube, Water Inlet				$ 22.18
14	WP488366		Clamp, Tube   (Replaces: 489385)				$ 10.73
18	2174157		Cover		Appelez-nous	-
19	WP489463		Screw   (Replaces: 489413)				$ 7.43
20	WPW10190929		Mold & Heater Assembly (also Order   (Replaces: 628228)				$ 210.17
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 11.50
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 48.38
23	WP627843		Ejector   (Replaces: 627843)				$ 79.00
24	WP2182124		Ice Striper   (Replaces: 627788)				$ 81.32
25	WP2195914		Support   (Replaces: 627790)				$ 98.82
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 10.44
27	542369		Cement Alumilastic)		Appelez-nous	-
27	WP627985		Thermostat (also Order)   (Replaces: 628397)				$ 103.18
28	8533917		Screw   (Replaces: 489322)				$ 12.64
29	W11501419		Clip-fill Tube   (Replaces: 2154101)			Immediately	$ 10.89
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
31	WP627792		Shut Off Arm   (Replaces: 627792)				$ 79.88
32	WP2187464		Harness, Wiring   (Replaces: 628256)				$ 117.72
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 30.40
35	W10190935		Module Assembly (includes Item 38)   (Replaces: 628399)			Immediately	$ 122.65
36	WP489442		Screw   (Replaces: 489438)			Immediately	$ 10.34
38	489136		Screw (3-24 X 23/64)				$ 9.72
39	WP488163		Screw   (Replaces: 488208)				$ 7.13
40	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.13
100	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
100	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
100	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
100	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
100	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
100	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
100	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
100	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
100	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
100	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
100	4317943		Complete Icemaker Assembly			Immediately	$ 165.11
100	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
100	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
100	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
100	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
100	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
100	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
100	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
100	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
100	2176379		Door Reversal Instructions		Appelez-nous	-
100	350942		Primer White (13 Oz. Spray Can)				$ 84.73
100	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
100	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
100	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
100	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
100	833938		Kit, Terminal Connector				$ 7.62
	1117510		Torx Key				$ 5.84
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2180574		Energy Label		Appelez-nous	-
	LIT2172667		Service & Wiring Sheet		Appelez-nous	-
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT2180401		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
