01 - Cabinet

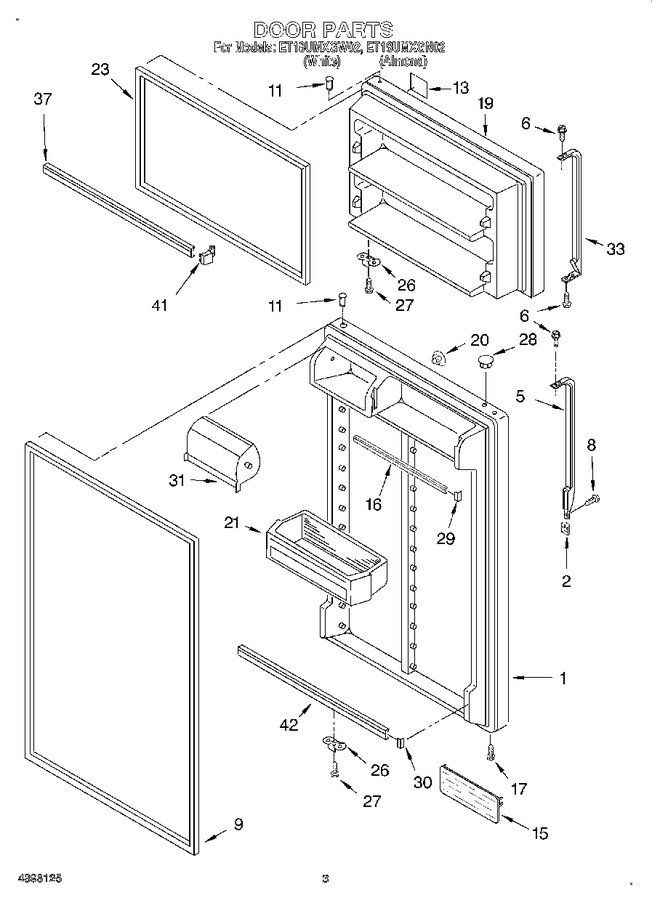

02 - Door
03 - Liner
04 - Unit
05 - Icemaker
06 - Shelf, Lit/optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183898 | Refrigerator Door (includes No.9 & No.11) (white) |
|
- | |||||
| 1 | 2183899 | Refrigerator Door (includes No.9 & No.11) (almond) |
|
- | |||||
| 2 | 2193353N | Cover, Endcap (almond) |
|
- | |||||
| 2 | WP2193353W | Cover, Endcap (white) (Replaces: 2193353W) |
|
$ 7.67 | |||||
| 5 | 2193351N | Handle (almond) |
|
- | |||||
| 5 | 4388947 | Handle (white) (Replaces: 2193351W) |
|
$ 184.02 | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 8 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 7.45 | ||||
| 9 | 2159057 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 168.76 | ||||
| 11 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 13 | 2175383 | Nameplate (white Model) |
|
- | |||||
| 13 | 2175384 | Nameplate (almond Model) |
|
- | |||||
| 15 | 2159303 | Shelf, Flip-up |
|
- | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 111.89 | |||||
| 17 | WP8281206 | Screw (Replaces: 489028) |
|
$ 7.53 | |||||
| 19 | 2182487 | Freezer Door (includes No.11 & No.23) (white) |
|
- | |||||
| 19 | 2182491 | Freezer Door (includes No.11 & No.23) (almond) |
|
- | |||||
| 20 | 2189008 | Hole Plug (almond) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 21 | 2195394 | Door Bin (3) |
|
- | |||||
| 23 | 2159327 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 148.12 | ||||
| 26 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 7.37 | ||||
| 28 | 989196 | Hole Plug (almond) |
|
- | |||||
| 29 | WP2156007 | Plug-trim (4) (Replaces: 2156007) |
|
Immediately | $ 7.23 | ||||
| 30 | WP2156006 | Plug-trim (4) (Replaces: 2156006) |
|
Immediately | $ 11.51 | ||||
| 31 | WP2218113 | Door, Compartment (Replaces: 2171036) |
|
Immediately | $ 45.30 | ||||
| 33 | 4388947 | Handle, F.c. (white) (Replaces: 2193350W) |
|
$ 184.02 | |||||
| 33 | 2193350N | Handle, F.c. (almond) |
|
- | |||||
| 37 | 2195946 | Trim-door (2) |
|
$ 46.58 | |||||
| 41 | WP2195916K | Endcap (4) (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 42 | WPW10421484 | Trim, Door (Replaces: 2195949) |
|
$ 122.63 | |||||
| 100 | 2199042 | Featurepak (includes 16, 15, 18, 21, 22, 29, 30, 31, 37, 41, 42) Also See Shelf Pg. |
|
- |
