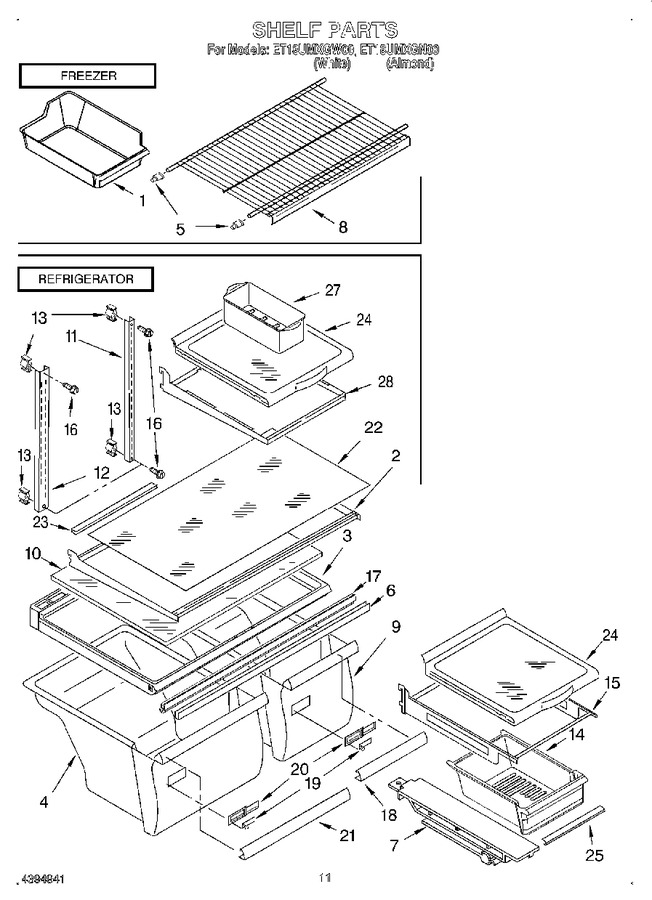

SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Icemaker


06 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254352A		Ice Cube Pan   (Replaces: 2176219)				$ 52.78
2	2163862		Shelf, Full Cantilever		Appelez-nous	-
3	WP2314548		Cover, Crisper   (Replaces: 2195342)				$ 233.85
4	W10854037		Pan, Crisper   (Replaces: 2193247)			Immediately	$ 161.27
5	WPW10130299		Shelf, Cup Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 91.87
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 32.83
8	WP2176275		Shelf   (Replaces: 2176275)				$ 111.06
9	W10856580		Pan, Crisper   (Replaces: 2193245)			Immediately	$ 159.33
10	WP2169921		Insert, Crisper Cover   (Replaces: 2169921)				$ 233.04
11	2163756		Shelf, Ladder (2)		Appelez-nous	-
12	2163826		Shelf, Ladder Center		Appelez-nous	-
13	2189314		Screw Support		Appelez-nous	-
14	WP2218127K		Pan, Meat   (Replaces: 2193256)				$ 132.12
15	2179716		Frame Assembly, Meat Shelf		Appelez-nous	-
16	W11544659		Screw   (Replaces: 489415)				$ 12.92
17	2172683		Gasket, Crisper Cover		Appelez-nous	-
18	2195340		Trim, Crisper Pan				$ 7.07
19	WP2176222		Slide, Crisper   (Replaces: 2176222)				$ 27.35
20	W11819839		Body, Humidity Control   (Replaces: 2176223)				$ 14.23
21	WP2195341		Trim, Crisper   (Replaces: 2195341)				$ 78.00
22	2177824		Glass, Full Shelf				$ 139.59
23	2193394		Trim, Shelf Rear		Appelez-nous	-
24	2195500		Shelf, Assembly Spillgaurd		Appelez-nous	-
25	2176356		Trim, Meat Pan		Appelez-nous	-
26	2174446		Frame Assembly, Shelf				$ 106.01
27	W10136387A		Egg Bin   (Replaces: 2182730)				$ 17.59
28	2174446		Shelf, Cantilever				$ 106.01
100	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
100	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
100	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
100	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
100	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
100	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
100	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
100	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
100	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
100	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
100	2199042		Featurepak (includes 4, 7, 12, 14, 15, 24, 25) Also See Door Pg.		Appelez-nous	-
100	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
100	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
100	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
100	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
100	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
100	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
100	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
100	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
100	2176379		Door Reversal Instructions		Appelez-nous	-
100	350942		Primer White (13 Oz. Spray Can)				$ 84.73
100	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
100	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
100	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
100	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
100	833938		Kit, Terminal Connector				$ 7.62
	1117510		Torx Key				$ 5.84
	LIT2199056		Energy Label		Appelez-nous	-
	LIT2195481		Service & Wiring Sheet		Appelez-nous	-
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT2199009		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
