SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional

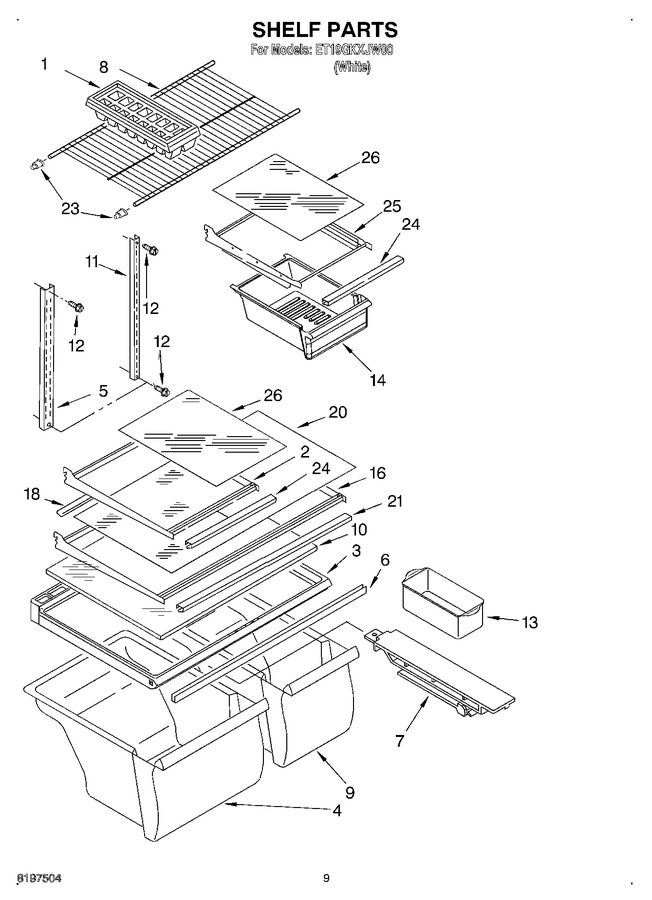

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 43.06
2	2201101		Shelf, Cantilever				$ 76.57
3	WP2314548		Cover, Crisper   (Replaces: 2195342)				$ 233.85
4	W10854037		Pan, Crisper   (Replaces: 2201023)			Immediately	$ 161.27
5	2202821		Shelf, Ladder		Appelez-nous	-
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 91.87
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 32.83
8	2189453		Shelf, Freezer		Appelez-nous	-
9	W10856580		Pan, Crisper   (Replaces: 2201022)			Immediately	$ 159.33
10	WP2169921		Glass, Crisper Cover   (Replaces: 2169921)				$ 233.04
11	2210522		Shelf, Ladder (2)				$ 44.10
12	WP489478		Screw   (Replaces: 489478)				$ 7.36
13	W10136387A		Egg Bin   (Replaces: 2164333)				$ 17.59
14	WP2218127K		Meat Pan   (Replaces: 2201031K)				$ 132.12
16	2201103		Shelf, Full Cantilever				$ 88.86
18	2193394		Trim, Shelf Rear		Appelez-nous	-
20	2177824		Glass, Full Shelf				$ 139.59
21	2201135		Trim, Shelf Front		Appelez-nous	-
23	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
24	2201097		Trim, Shelf		Appelez-nous	-
25	2201105		Pan Shelf, Cantilever				$ 78.45
26	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 139.50
26	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
26	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
26	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
26	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
26	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
26	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
26	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
26	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
26	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
26	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
26	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
26	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 24.99
26	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
26	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
26	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
26	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
26	833938		Kit, Terminal Connector				$ 7.62
26	1117510		Torx Key				$ 5.84
26	2169917		Glass, Half Shelf				$ 84.17
26	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
26	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
26	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
26	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
26	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
26	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
26	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
26	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
26	350942		Primer White (13 Oz. Spray Can)				$ 84.73
26	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
26	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11

    View Diagram in Separate Window       Print Part List
