SELECT A DIAGRAM
01 - Cabinet
02 - Liner

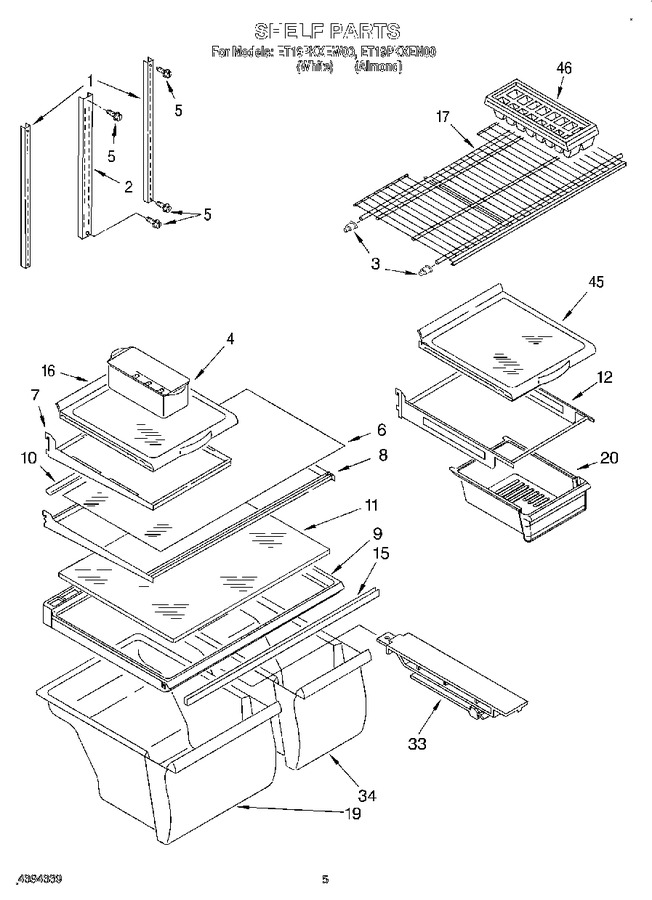

03 - Shelf
04 - Refrigerator Door
05 - Unit
06 - Freezer Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2163756 | Shelf, Ladder (2) |
|
- | |||||
| 2 | 2163826 | Shelf, Ladder Center |
|
- | |||||
| 3 | WPW10130299 | Cup, Shelf Mounting (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 4 | W10136387A | Bin, Egg (Replaces: 2169933) |
|
$ 17.59 | |||||
| 5 | 520965 | Screw, Support |
|
$ 28.22 | |||||
| 6 | 2190651 | Glass, Full Shelf |
|
- | |||||
| 7 | 2174446 | Frame Assembly, Shelf |
|
$ 106.01 | |||||
| 8 | 2163862 | Shelf, Full Cantilever |
|
- | |||||
| 9 | WP2314548 | Cover, Crisper (Replaces: 2190580) |
|
$ 233.85 | |||||
| 10 | 2163884 | Trim, Shelf Rear |
|
- | |||||
| 11 | WP2169921 | Glass, Crisper Cover (Replaces: 2176233) |
|
$ 233.04 | |||||
| 12 | 2179716 | Frame Assembly, Meat Shelf |
|
- | |||||
| 15 | WP2172748 | Crisper Support (Replaces: 2172541) |
|
$ 91.87 | |||||
| 16 | 2184417 | Shelf Assembly, Spillguard |
|
- | |||||
| 17 | WP2176275 | Shelf, Freezer (Replaces: 2176275) |
|
$ 111.06 | |||||
| 19 | W10854037 | Pan, Crisper Wide (Replaces: 2190601) |
|
Immediately | $ 161.27 | ||||
| 20 | WP2218127K | Pan, Meat (Replaces: 2176231) |
|
$ 132.12 | |||||
| 33 | WP2163835 | Crisper Track, Center (Replaces: 2163835) |
|
Immediately | $ 32.83 | ||||
| 34 | W10856580 | Pan, Crisper (Replaces: 2190599) |
|
Immediately | $ 159.33 | ||||
| 45 | 2184419 | Shelf Assembly, Spillguard |
|
- | |||||
| 46 | WP841180A | Ice Cube Tray (Replaces: 841180) |
|
Immediately | $ 43.06 |
