SELECT A DIAGRAM

01 - Cabinet, Literature

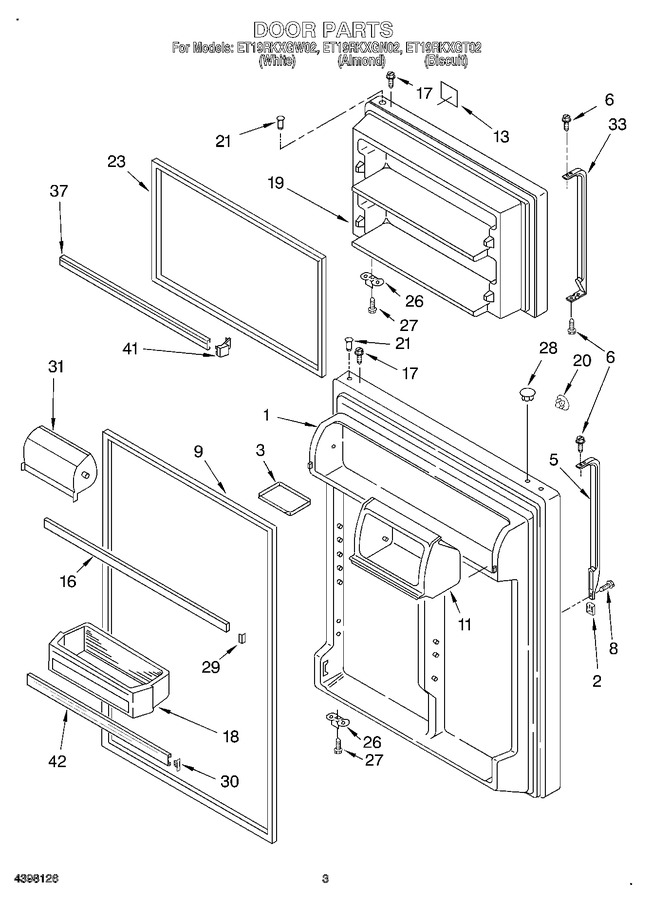

02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183865		Refrigerator Door (includes No.9 & No.21) (almond)		Appelez-nous	-
1	2183864		Refrigerator Door (includes No.9 & No.21) (white)		Appelez-nous	-
1	2205286		Refrigerator Door (includes No.9 & No.21) (biscuit)		Appelez-nous	-
2	2193353T		Handle, Trim (biscuit)		Appelez-nous	-
2	WP2193353W		Handle, Trim (white)   (Replaces: 2193353W)				$ 7.67
2	2193353N		Handle, Trim (almond)		Appelez-nous	-
3	2195388		Tray, Door		Appelez-nous	-
5	4388947		Handle (white)   (Replaces: 2193351W)				$ 184.02
5	2193351N		Handle (almond)		Appelez-nous	-
5	2193351T		Handle (biscuit)		Appelez-nous	-
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.45
9	2159057		Door Gasket, Magnetic (mist Beige)			Immediately	$ 168.76
11	2156062		Housing Compartment		Appelez-nous	-
13	2205769		Nameplate (biscuit Model)		Appelez-nous	-
13	2175383		Nameplate (white)		Appelez-nous	-
13	2175384		Nameplate (almond)		Appelez-nous	-
16	2159312		Trim-door Shelf				$ 47.75
17	WP8281206		Screw   (Replaces: 489028)				$ 7.53
18	2179605		Door Bin (3)		Appelez-nous	-
19	2183861		Freezer Door Panel (almond)		Appelez-nous	-
19	2205130		Freezer Door Panel (biscuit)		Appelez-nous	-
19	2183860		Freezer Door Panel (white)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 6.99
20	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.17
20	2189008		Hole Plug (almond)		Appelez-nous	-
21	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
23	2159327		Door Gasket, Magnetic (mist Beige)			Immediately	$ 148.12
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 12.03
27	WP488921		Screw Page.   (Replaces: 488921)			Immediately	$ 7.42
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2200934)				$ 7.19
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
28	989196		Hole Plug (almond)		Appelez-nous	-
29	2177340		Plug-trim				$ 5.84
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
31	2182400		Door, Compartment		Appelez-nous	-
33	4388947		Handle, F.c. (white)   (Replaces: 2193350W)				$ 184.02
33	2193350N		Handle, F.c. (almond)		Appelez-nous	-
33	2193350T		Handle, F.c. (biscuit)		Appelez-nous	-
37	2195946		Trim-door (2)				$ 46.58
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 11.86
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 122.63
