SELECT A DIAGRAM
01 - Cabinet
02 - Door
03 - Liner
04 - Unit
05 - Shelf
06 - Ice Maker, Lit/optional
SELECT A DIAGRAM
New Model Search:

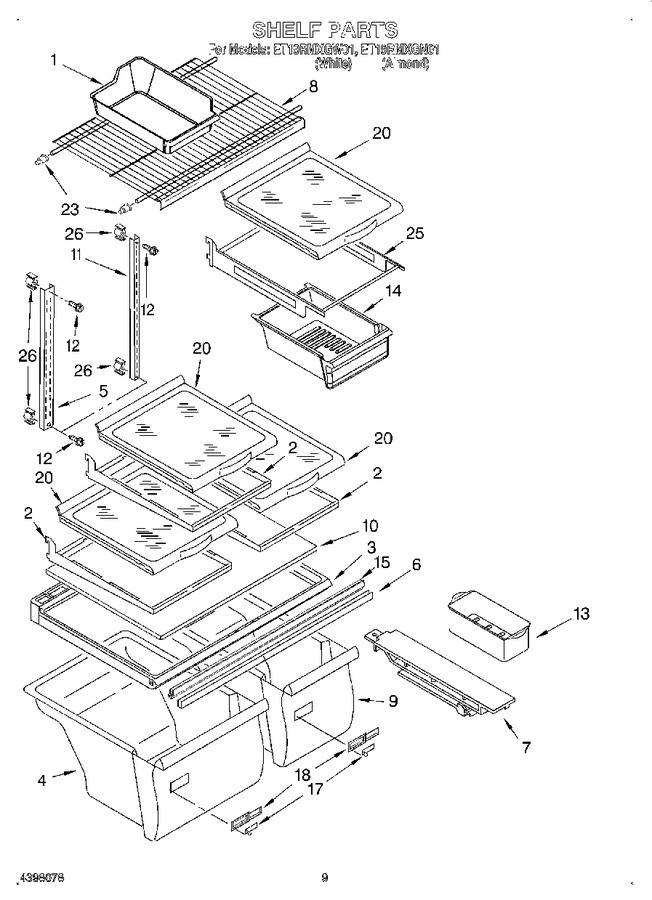

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2254352A | Ice Cube Pan (Replaces: 2176219) |
|
$ 52.78 | |||||
| 2 | 2174446 | Frame Assembly, Shelf (3) |
|
$ 106.01 | |||||
| 3 | WP2314548 | Cover, Crisper (Replaces: 2200768) |
|
$ 233.85 | |||||
| 4 | W10854037 | Pan, Crisper (Replaces: 2218141) |
|
Immediately | $ 161.27 | ||||
| 5 | 2163826 | Shelf Ladder, |
|
- | |||||
| 6 | WP2172748 | Support, Crisper Cover (Replaces: 2172541) |
|
$ 91.87 | |||||
| 7 | WP2163835 | Track, Crisper (Replaces: 2163835) |
|
Immediately | $ 32.83 | ||||
| 8 | WP2176275 | Shelf (Replaces: 2176275) |
|
$ 111.06 | |||||
| 9 | W10856580 | Pan, Crisper (Replaces: 2201026) |
|
Immediately | $ 159.33 | ||||
| 10 | WP2169921 | Glass, Crisper Cover (Replaces: 2169921) |
|
$ 233.04 | |||||
| 11 | 2163756 | Shelf, Ladder (2) |
|
- | |||||
| 12 | W11544659 | Screw (Replaces: 489415) |
|
$ 12.92 | |||||
| 13 | W10136387A | Egg Bin (Replaces: 2182730) |
|
$ 17.59 | |||||
| 14 | WP2218127K | Meat Pan (Replaces: 2201031K) |
|
$ 132.12 | |||||
| 15 | 2172683 | Gasket, Crisper Cover |
|
- | |||||
| 17 | WP2176222 | Slide, Crisper (Replaces: 2176222) |
|
$ 27.35 | |||||
| 18 | W11819839 | Body, Humidity Control (Replaces: 2176223) |
|
$ 14.23 | |||||
| 20 | 2195500 | Shelf Assembly, Spillguard (3) |
|
- | |||||
| 23 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 25 | 2179716 | Pan Shelf, Cantilever |
|
- | |||||
| 26 | 2189314 | Screw Support |
|
- | |||||
| 100 | 2200551 | Featurepak (includes 2, 13, 14, 20, 25, 44) Also See Door Page. |
|
- |
