SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Ice Maker


06 - Shelf, Optional

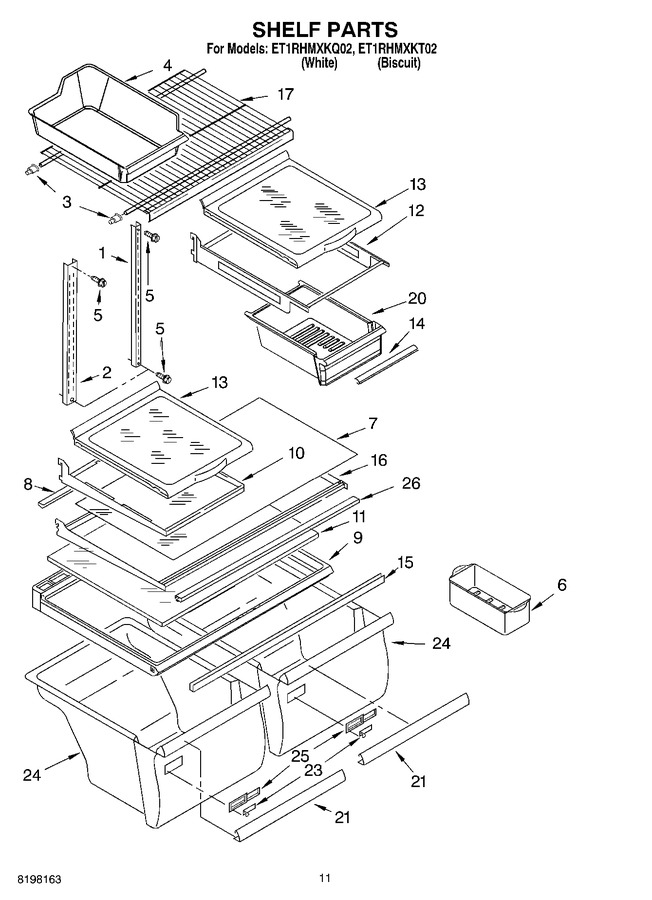

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
4	2254352A		Ice Cube Pan   (Replaces: 2176219)				$ 58.64
5	WP489478		Screw   (Replaces: 489478)				$ 8.18
6	W10136387A		Egg Bin   (Replaces: 2216624)				$ 19.54
7	2174693		Glass, Full Shelf				$ 95.31
8	WP2188689		Trim, Shelf (rear)   (Replaces: 2188689)				$ 121.55
9	WP2314549		Crisper Cover   (Replaces: 2210524)				$ 279.10
10	2174447		Shelf, Cantilever				$ 79.10
11	WP2176225		Insert, Crisper Cover   (Replaces: 2176225)				$ 264.41
12	2205162		Shelf, Cantilever				$ 83.71
13	WP999520		Shelf Assembly, Spillguard   (Replaces: 2195347)				$ 273.62
14	2176357		Trim, Shelf Front				$ 33.74
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	2201104		Shelf, Full Cantilever				$ 110.02
17	2184667		Shelf, Freezer		Appelez-nous	-
20	WP2218132K		Pan, Meat   (Replaces: 2218132)			Immediately	$ 171.43
21	WP2195341		Trim, Crisper Pan   (Replaces: 2195341)				$ 86.67
23	WP2176222		Slide, Crisper   (Replaces: 2176222)				$ 27.35
24	W10854037		Crisper Pan   (Replaces: 2218139)			Immediately	$ 179.19
25	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.81
26	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 155.00
26	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
26	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
26	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
26	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
26	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
26	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
26	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
26	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
26	439290		Enamel, Biscuit (12 Oz. Spray Can)		Appelez-nous	-
26	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 27.77
26	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
26	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
26	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
26	833938		Kit, Terminal Connector				$ 8.47
26	1117510		Torx Key				$ 5.84
26	2188691		Trim, Shelf (front)				$ 50.70
26	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
26	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
26	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
26	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
26	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
26	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
26	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
26	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
26	2172516		Door Reversal Instructions		Appelez-nous	-
26	350942		Primer, White (12 Oz. Spray Can)				$ 94.14
26	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
26	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12

    View Diagram in Separate Window       Print Part List
