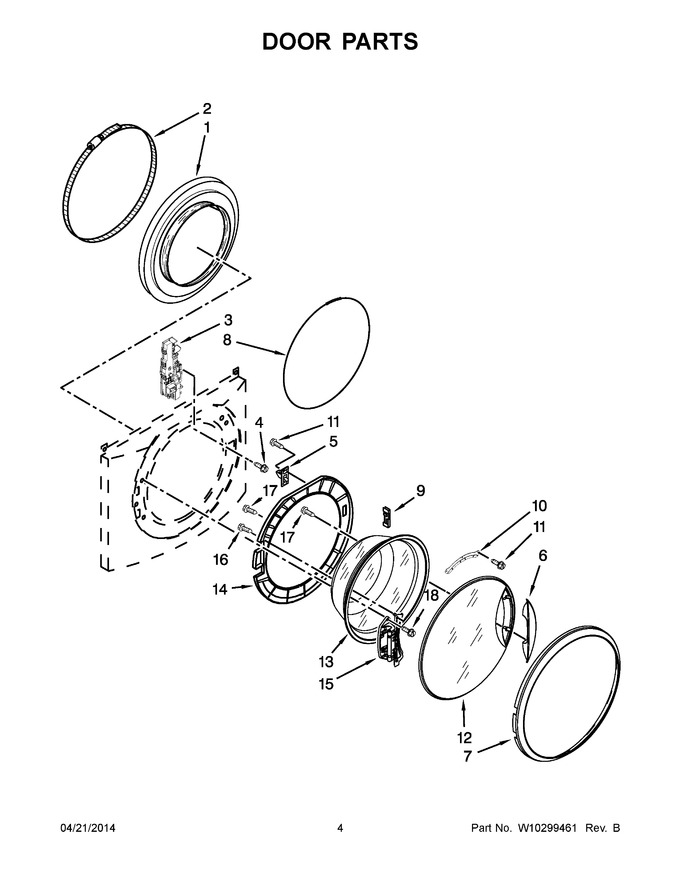

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10130455 | Bellow (Replaces: W10130455) |
|
$ 320.91 | |||||
| 2 | WP8540108 | Clamp, Bellow To Tub (Replaces: 8540108) |
|
Immediately | $ 25.64 | ||||
| 3 | WPW10196671 | Lock, Door (Replaces: W10196671) |
|
$ 160.61 | |||||
| 4 | WP8540725 | Screw (Replaces: 8540725) |
|
Immediately | $ 8.52 | ||||
| 5 | WP8540221 | Hook, Door (Replaces: 8540221) |
|
Immediately | $ 12.39 | ||||
| 6 | W10082060 | Handle, Door |
|
$ 234.29 | |||||
| 7 | WPW10079810 | Trim Ring, Outer Door (Replaces: W10079810) |
|
$ 332.79 | |||||
| 8 | W11032829 | Clamp, Bellow To Front Panel (Replaces: W10217563) |
|
Immediately | $ 22.30 | ||||
| 9 | WP8540115 | Clamp, Support (Replaces: 8540115) |
|
$ 7.30 | |||||
| 10 | W11665946 | Clamp, Glass (Replaces: 8540114) |
|
$ 21.90 | |||||
| 11 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.94 | |||||
| 12 | 8540792 | Inner Door Assembly |
|
- | |||||
| 13 | WPW10388315 | Glass, Door (Replaces: W10112078) |
|
$ 345.28 | |||||
| 14 | WPW10138523 | Frame, Door (Replaces: W10138523) |
|
$ 236.06 | |||||
| 15 | 8540416 | Hinge, Door |
|
- | |||||
| 16 | WP8181660 | Screw (Replaces: 8540284) |
|
$ 7.30 | |||||
| 17 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 18 | WP489442 | Screw (Replaces: W10015090) |
|
Immediately | $ 11.49 |
