SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf


06 - Icemaker, Lit/optional

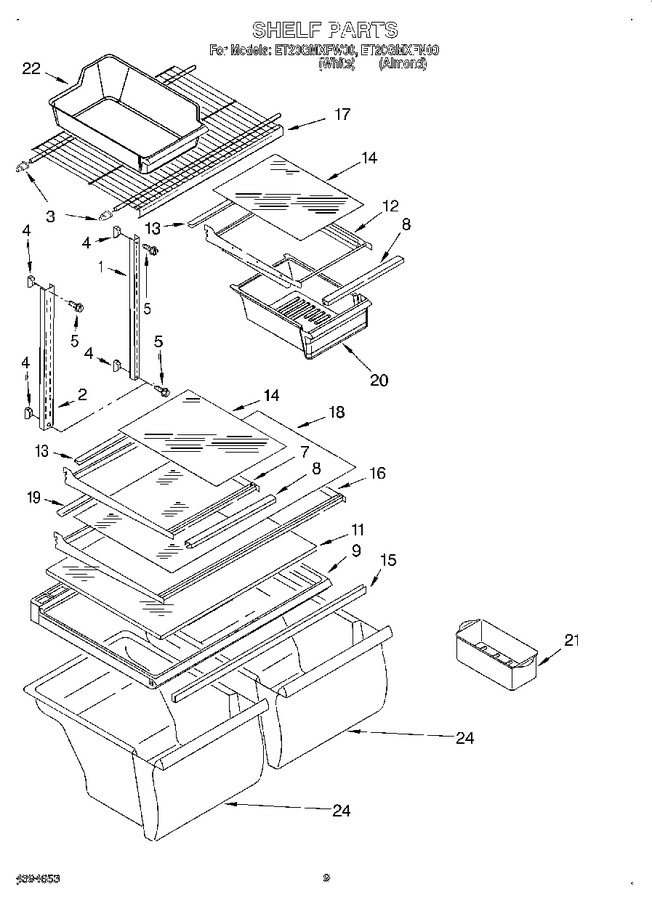

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163756		Shelf, Ladder (2)		Appelez-nous	-
2	2163826		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
4	520965		Screw, Support				$ 28.22
5	W11544659		Screw   (Replaces: 489415)				$ 12.92
7	2163860		Shelf, Cantilever		Appelez-nous	-
8	2176263		Trim, Shelf Front		Appelez-nous	-
9	WP2314549		Crisper Cover   (Replaces: 2195344)				$ 251.19
11	WP2176225		Insert, Crisper Cover   (Replaces: 2176225)				$ 237.97
12	2176306		Pan Shelf, Cantilever		Appelez-nous	-
13	2193393		Trim, Shelf Rear		Appelez-nous	-
14	2174694		Glass, Shelf				$ 84.37
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 91.87
16	2163863		Shelf, Full Cantilever		Appelez-nous	-
17	2184667		Shelf, Freezer		Appelez-nous	-
18	2174693		Glass, Full Shelf				$ 95.31
19	2193395		Trim, Rear Shelf		Appelez-nous	-
20	2169974		Pan, Meat		Appelez-nous	-
21	W10136387A		Egg Bin   (Replaces: 2164333)				$ 17.59
22	2254352A		Pan, Ice Cube   (Replaces: 2176219)				$ 52.78
24	W10854037		Pan, Crisper   (Replaces: 2166256)			Immediately	$ 161.27

    View Diagram in Separate Window       Print Part List
