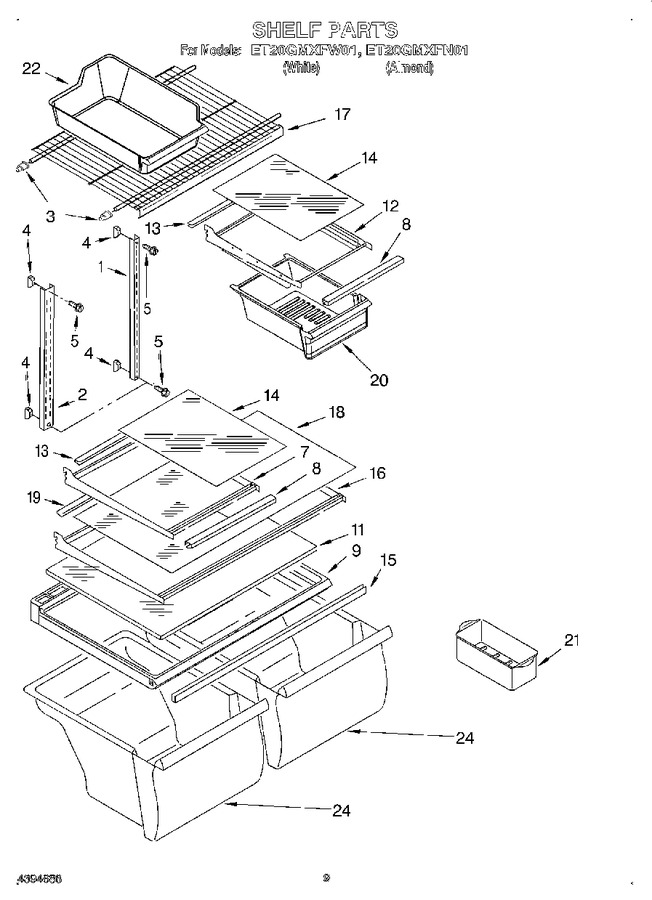

1	2163756		Shelf, Ladder (2)		Appelez-nous	-
2	2163826		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
4	520965		Screw, Support				$ 28.22
5	W11544659		Screw   (Replaces: 489415)				$ 12.92
7	2163860		Shelf, Cantilever		Appelez-nous	-
8	2176263		Trim, Shelf Front		Appelez-nous	-
9	WP2314549		Crisper Cover   (Replaces: 2195344)				$ 251.19
11	WP2176225		Insert, Crisper Cover   (Replaces: 2176225)				$ 237.97
12	2176306		Pan Shelf, Cantilever		Appelez-nous	-
13	2193393		Trim, Shelf Rear		Appelez-nous	-
14	2174694		Glass, Shelf				$ 84.37
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 91.87
16	2163863		Shelf, Full Cantilever		Appelez-nous	-
17	2184667		Shelf, Freezer		Appelez-nous	-
18	2174693		Glass, Full Shelf				$ 95.31
19	2193395		Trim, Rear Shelf		Appelez-nous	-
20	2169974		Pan, Meat		Appelez-nous	-
21	W10136387A		Egg Bin   (Replaces: 2164333)				$ 17.59
22	2254352A		Pan, Ice Cube   (Replaces: 2176219)				$ 52.78
24	W10854037		Pan, Crisper   (Replaces: 2166256)			Immediately	$ 161.27
100	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
100	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
100	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
100	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
100	2182578		Featurepak (includes 7,8, 13,14,20,21) Also See Door Pg.		Appelez-nous	-
100	350942		Primer White (13 Oz. Spray Can)				$ 84.73
100	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
100	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
100	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
100	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
100	833938		Kit, Terminal Connector				$ 7.62
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2195369		Use & Care Guide		Appelez-nous	-
	978028		Valve, Access (1/2)		Appelez-nous	-
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
	978026		Valve, Access (5/16``)			Immediately	$ 121.04
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT2195606		Energy Label		Appelez-nous	-
	LIT2195481		Service & Wiring Sheet		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	876764		Valve, Access(3/16``)			Immediately	$ 86.33
	978030		Valve, Access (3/4``)				$ 123.53
	978029		Valve Access (5/8``)				$ 93.85
