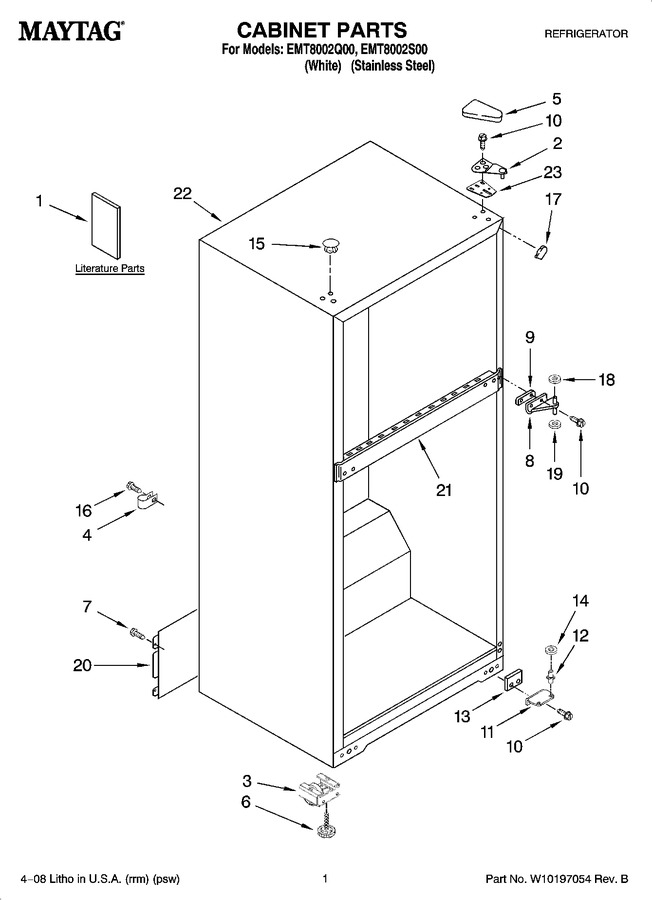

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual Ref./fzr.				$ 30.30
2	WP2261963		Hinge Butt, Top   (Replaces: 2261963)			Immediately	$ 107.48
3	WPW10142530		Roller-front   (Replaces: W10142530)			Immediately	$ 106.29
4	489348		Clamp, Tube		Appelez-nous	-
5	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 17.21
5	WP2213360		Cover, Hinge (white)   (Replaces: 2213360)				$ 18.17
6	WPW10133299		Leveler   (Replaces: W10142551)				$ 11.12
7	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
8	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 76.57
9	2166043		Shim, Hinge Center (white)				$ 62.78
9	2215385		Shim, Hinge Center (black)				$ 82.21
10	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
11	WP2325482		Hinge Butt, Btm   (Replaces: 2325482)			Immediately	$ 72.00
12	WP2325483		Hinge-pin, Btm   (Replaces: 2325483)			Immediately	$ 6.80
13	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.34
14	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.67
15	WP2183998		Hole Plug (6) (black)   (Replaces: 2183998)				$ 17.11
15	WP2151652		Hole Plug (6) (white)   (Replaces: 2201012)				$ 20.58
16	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
17	W11500943		Corner Filler (black)   (Replaces: 2215384)				$ 7.18
17	W10859322		Corner Filler (white)   (Replaces: 2166003)				$ 7.28
18	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.28
19	WP487802		Washer (7/64)   (Replaces: 487802)			Immediately	$ 7.12
20	2213762		Cover, Unit		Appelez-nous	-
23	W11169703		Shim-hinge-top   (Replaces: 2221885)				$ 14.21
