SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf


06 - Icemaker, Lit/optional

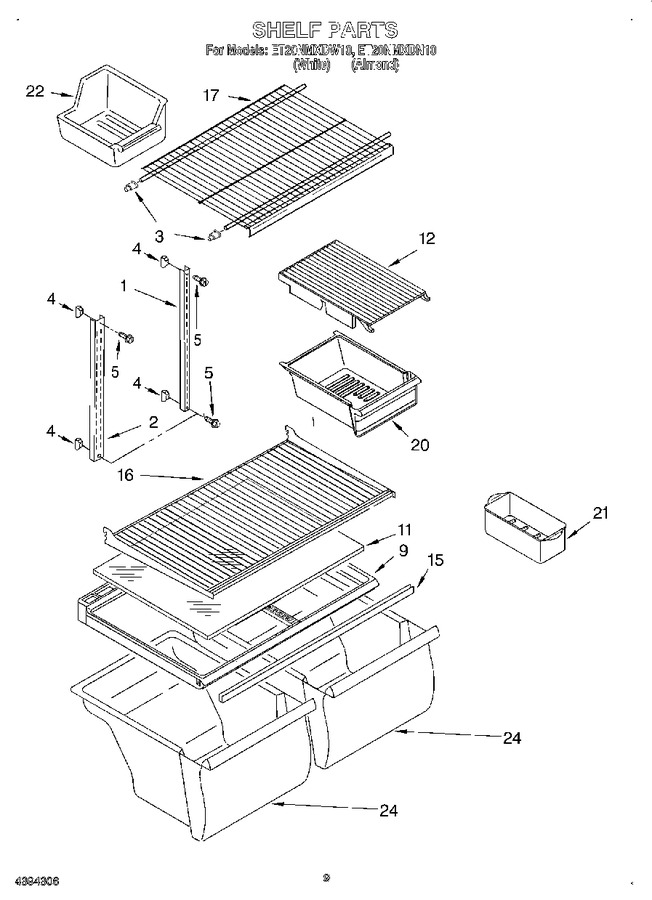

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2172637		Shelf, Ladder (2)		Appelez-nous	-
2	2172638		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
4	520965		Screw, Support				$ 28.22
5	W11544659		Screw   (Replaces: 489415)				$ 12.92
9	WP2314549		Crisper Cover   (Replaces: 2190586)				$ 251.19
11	WP2176225		Insert, Crisper Cover   (Replaces: 2163843)				$ 237.97
12	2166213		Cover, Meat Pan		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 91.87
16	2179836		Shelf, Full Cantilever		Appelez-nous	-
17	2184566		Shelf, Freezer		Appelez-nous	-
20	2190687		Pan, Meat		Appelez-nous	-
21	W10136387A		Egg Bin   (Replaces: 2166748)				$ 17.59
22	W11625904		Pan, Ice Cube   (Replaces: 2166261)				$ 61.05
24	W10854037		Pan, Crisper   (Replaces: 2190529)			Immediately	$ 161.27

    View Diagram in Separate Window       Print Part List
