SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit

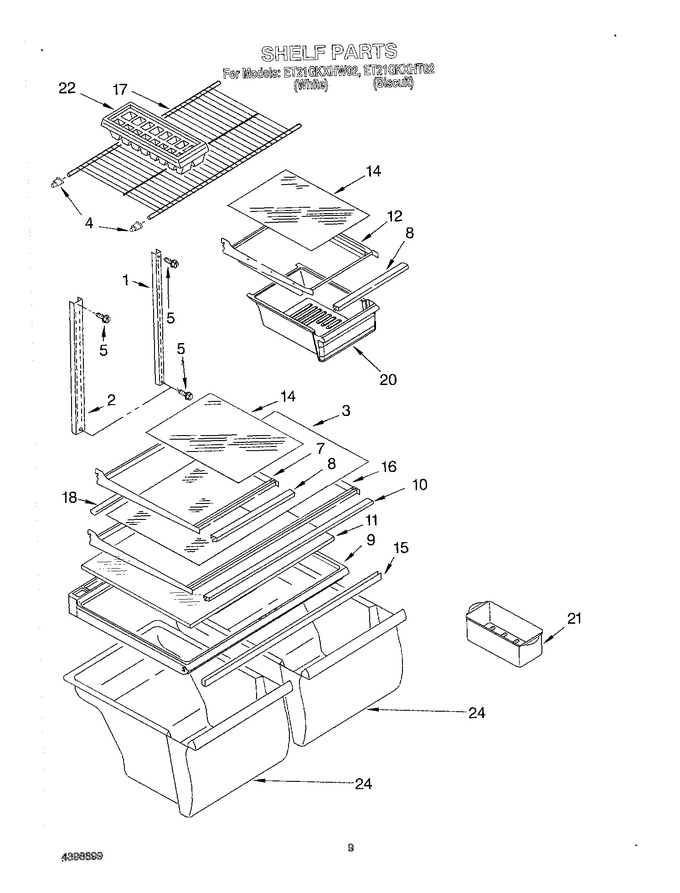

05 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	2174693		Glass, Full Shelf				$ 95.31
4	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
5	WP489478		Screw   (Replaces: 489478)				$ 7.36
7	2201102		Shelf, Cantilever				$ 74.19
8	2201098		Trim, Shelf Front		Appelez-nous	-
9	WP2314549		Crisper Cover   (Replaces: 2210524)				$ 251.19
10	2201136		Trim, Shelf Front		Appelez-nous	-
11	WP2176225		Insert, Crisper Cover   (Replaces: 2176225)				$ 237.97
12	2201106		Pan, Shelf Cantilever				$ 77.79
14	2174694		Glass, Shelf				$ 84.37
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 91.87
16	2201104		Shelf, Full Cantilever				$ 110.02
17	2189454		Shelf, Freezer		Appelez-nous	-
18	2193395		Trim, Rear Shelf		Appelez-nous	-
20	WP2218132K		Pan, Meat   (Replaces: 2201032K)			Immediately	$ 154.29
21	W10136387A		Egg Bin   (Replaces: 2182730)				$ 17.59
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 43.06
24	833938		Kit, Terminal Connector				$ 7.62
24	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
24	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
24	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
24	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
24	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
24	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
24	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
24	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
24	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
24	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
24	350942		Primer White (13 Oz. Spray Can)				$ 84.73
24	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
24	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
24	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
24	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
24	1117510		Torx Key				$ 5.84
24	W10854037		Pan, Crisper   (Replaces: 2201023)			Immediately	$ 161.27
24	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
24	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
24	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
24	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
24	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
24	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
24	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
24	799832		Kit. Porcelain Repair (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
