SELECT A DIAGRAM

01 - Cabinet, Literature

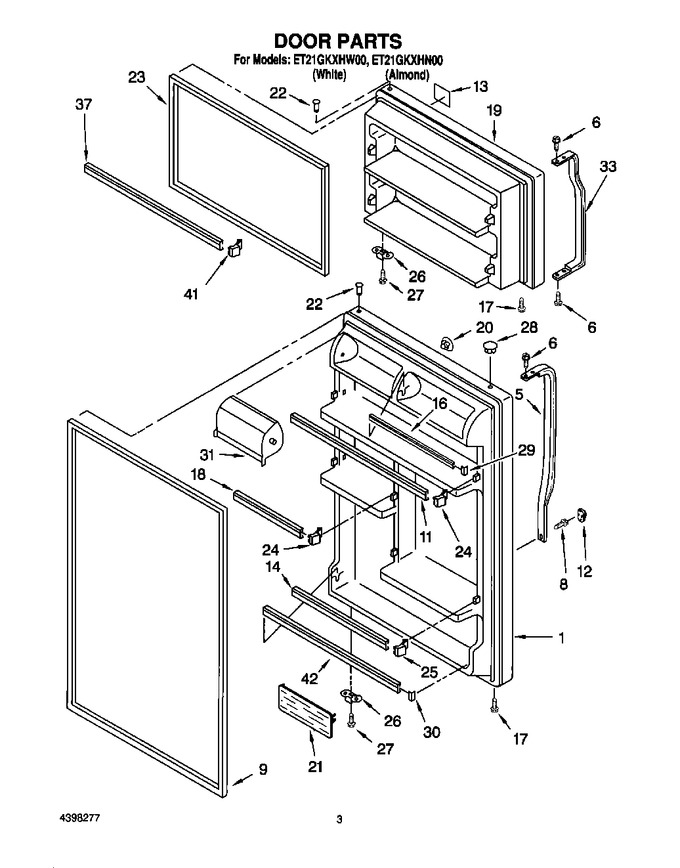

02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183915		Refrigerator Door (includes No.9 & No.22) (white)		Appelez-nous	-
1	2183916		Refrigerator Door (includes No.9 & No.22) (almond)		Appelez-nous	-
5	2202807N		Handle Center (almond)		Appelez-nous	-
5	WP2202807W		Handle Center (white)   (Replaces: 2202807W)				$ 146.68
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.45
9	2159061		Door Gasket, Magnetic (mist Beige)			Immediately	$ 165.30
11	WP2201061		Trim, Door Shelf   (Replaces: 2201061)				$ 111.89
12	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 7.33
12	2202819N		Cover, Screw (almond)		Appelez-nous	-
13	2175384		Nameplate (almond Model)		Appelez-nous	-
13	2175383		Nameplate (white Model)		Appelez-nous	-
14	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 82.60
16	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 111.89
17	WP8281206		Screw   (Replaces: 489028)				$ 7.53
18	WP2201062		Trim, Door   (Replaces: 2201062)				$ 7.58
19	2184400		Freezer Door (includes No.22 & No.23) (almond)		Appelez-nous	-
19	W11023679		Freezer Door (includes No.22 & No.23) (white)   (Replaces: 2182489)				$ 682.52
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 6.99
20	2189008		Hole Plug (almond)		Appelez-nous	-
21	WP2188236		Shelf, Flip-up   (Replaces: 2159304)				$ 57.94
22	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
23	2159060		Door Gasket, Magnetic (mist Beige)				$ 302.41
24	WP2156003		Endcap, Trim (4)   (Replaces: 2156003)			Immediately	$ 11.93
25	WP2195915		Endcap-trim (2)   (Replaces: 2195915)				$ 12.35
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 12.03
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
28	989196		Hole Plug (almond)		Appelez-nous	-
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.23
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
31	WP2218118		Compartment Door   (Replaces: 2177130)				$ 73.73
33	WP2202806W		Handle, F.c. (white)   (Replaces: 2202806W)				$ 139.86
33	2202806N		Handle, F.c. (almond)		Appelez-nous	-
37	WP2201060		Trim-door (2)   (Replaces: 2201060)				$ 108.19
41	WP2156003		Endcap, Trim (4)   (Replaces: 2156003)			Immediately	$ 11.93
42	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 103.27
100	2204716		Featurepak (includes 11,14,16, 18,24,25,29,30,31, 37,41,42) Also See Shelf Page.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
