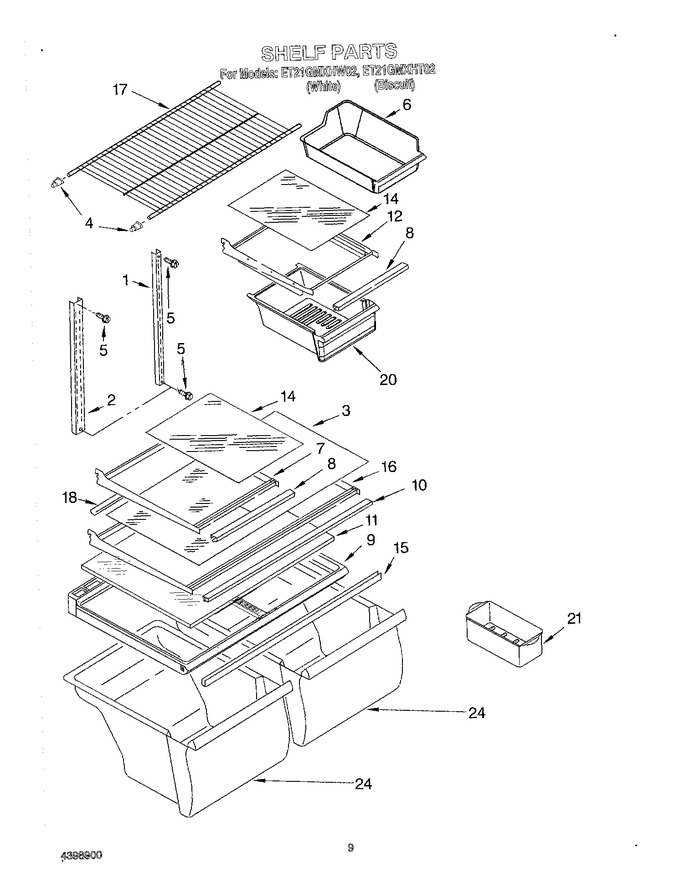

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2202821 | Shelf, Ladder Center |
|
- | |||||
| 3 | 2174693 | Glass, Full Shelf |
|
$ 95.31 | |||||
| 4 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 5 | 983604 | Screw |
|
- | |||||
| 6 | 2254352A | Pan, Ice (Replaces: 2176219) |
|
$ 52.78 | |||||
| 7 | 2201102 | Shelf, Cantilever |
|
$ 74.19 | |||||
| 8 | 2201098 | Trim, Shelf Front |
|
- | |||||
| 9 | WP2314549 | Crisper Cover (Replaces: 2210524) |
|
$ 251.19 | |||||
| 10 | 2201136 | Trim, Shelf Front |
|
- | |||||
| 11 | WP2176225 | Insert, Crisper Cover (Replaces: 2176225) |
|
$ 237.97 | |||||
| 12 | 2201106 | Pan, Shelf Cantilever |
|
$ 77.79 | |||||
| 14 | 2174694 | Glass, Shelf |
|
$ 84.37 | |||||
| 15 | WP2172748 | Crisper, Support (Replaces: 2163832) |
|
$ 91.87 | |||||
| 16 | 2201104 | Shelf, Full Cantilever |
|
$ 110.02 | |||||
| 17 | 2189454 | Shelf, Freezer |
|
- | |||||
| 18 | 2193395 | Trim, Rear Shelf |
|
- | |||||
| 20 | WP2218132K | Pan, Meat (Replaces: 2201032K) |
|
Immediately | $ 154.29 | ||||
| 21 | W10136387A | Egg Bin (Replaces: 2182730) |
|
$ 17.59 | |||||
| 24 | W10854037 | Pan, Crisper (Replaces: 2201023) |
|
Immediately | $ 161.27 |
