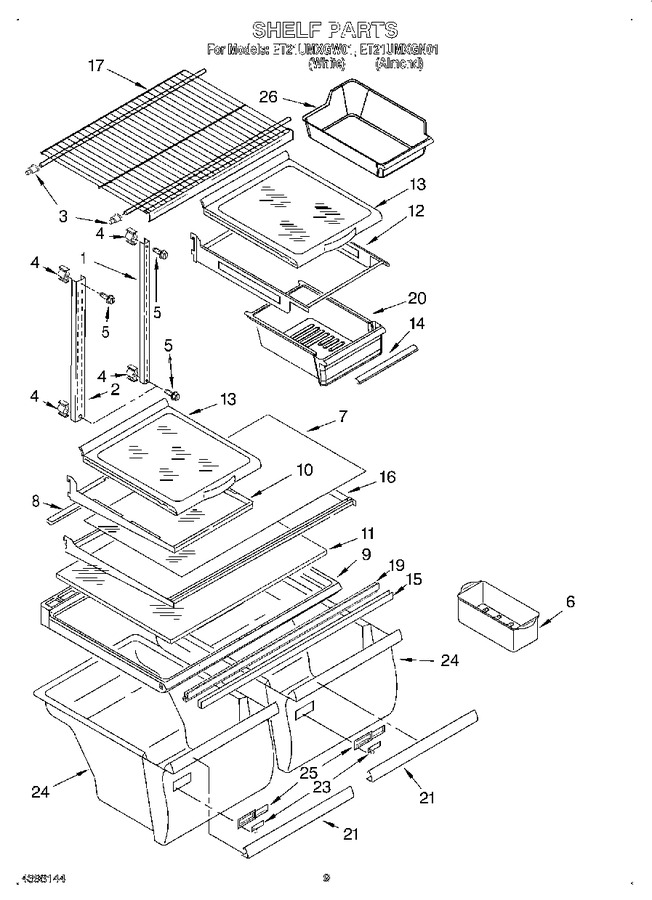

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163756		Shelf, Ladder (2)		Appelez-nous	-
2	2163826		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
4	520965		Screw, Support				$ 31.35
5	W11544659		Screw   (Replaces: 489415)				$ 14.35
6	W10136387A		Egg Bin   (Replaces: 2182730)				$ 19.54
7	2174693		Glass, Full Shelf				$ 95.31
8	2193395		Trim, Rear Shelf		Appelez-nous	-
9	WP2314549		Crisper Cover   (Replaces: 2195344)				$ 279.10
10	2174447		Shelf, Cantilever				$ 79.10
11	WP2176225		Insert, Crisper Cover   (Replaces: 2176225)				$ 264.41
12	2179717		Shelf, Cantilever		Appelez-nous	-
13	WP999520		Shelf, Assembly Spillguard   (Replaces: 2195501)				$ 273.62
14	2176357		Trim, Shelf Front				$ 33.74
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	2163863		Shelf, Full Cantilever		Appelez-nous	-
17	2184667		Shelf, Freezer		Appelez-nous	-
19	2172684		Gasket, Crisper Cover		Appelez-nous	-
20	WP2218132K		Pan, Meat   (Replaces: 2201032)			Immediately	$ 171.43
21	WP2195341		Trim, Crisper Pan   (Replaces: 2195341)				$ 86.67
23	WP2176222		Slide, Crisper   (Replaces: 2176222)				$ 27.35
24	W10854037		Pan, Crisper   (Replaces: 2218141)			Immediately	$ 179.19
25	W11819839		Body, Humidity Control   (Replaces: 2176223)				$ 15.81
26	2254352A		Ice Bucket   (Replaces: 2176219)				$ 58.64
100	2199048		Featurepak (includes 6, 10, 12, 13, 14, 20) Also See Door Page		Appelez-nous	-
