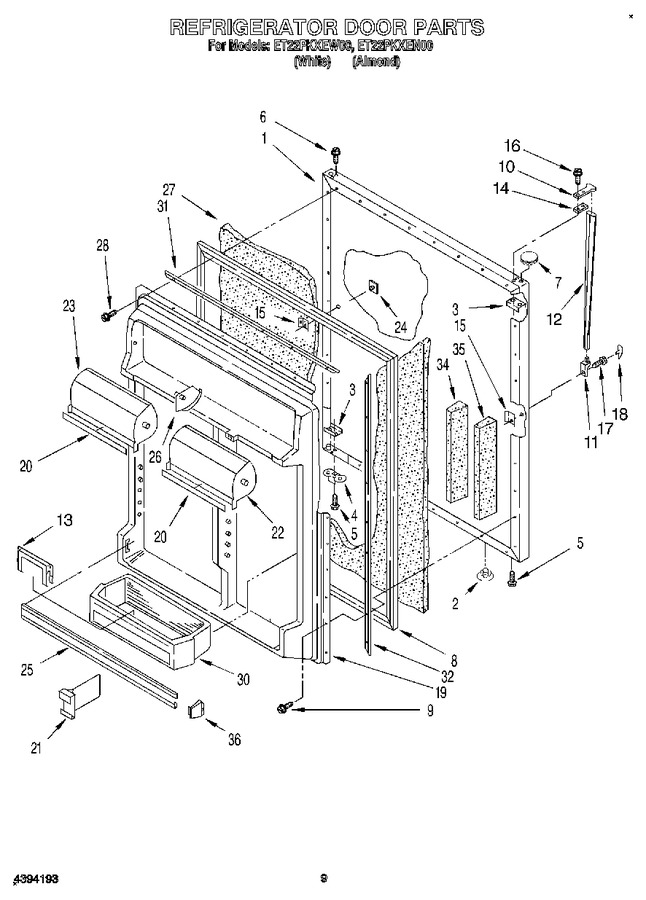

05 - Unit


06 - Refrigerator Door


07 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1122549		Refrigerator Door Panel (also Order Item 27) (white)		Appelez-nous	-
1	1122658		Refrigerator Door Panel (also Order Item 27) (almond)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
6	WP8281206		Screw   (Replaces: 489028)				$ 7.53
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2188450A		Door Gasket, Magnetic   (Replaces: 1122828)				$ 255.68
9	WP489442		Screw (20)   (Replaces: 489442)			Immediately	$ 10.34
10	819342		Handle End (white)   (Replaces: 9791771)			Immediately	$ 46.18
10	819342		Handle End (almond)   (Replaces: 9791772)			Immediately	$ 46.18
11	819342		Handle End, Side (almond)   (Replaces: 2183142)			Immediately	$ 46.18
11	819342		Handle End, Side (white)   (Replaces: 2183141)			Immediately	$ 46.18
12	2148036		Handle, Center (almond)		Appelez-nous	-
12	WP2162555		Handle, Center (white)   (Replaces: 2148035)			Immediately	$ 141.86
13	2163566		Retainer, Bottle		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 7.09
16	WP488920		Screw   (Replaces: 489006)				$ 7.18
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.45
18	9791769		Screw Cover (white)				$ 5.70
18	9791770		Screw Cover (almond)		Appelez-nous	-
19	2177226		Interior Door Panel		Appelez-nous	-
20	2164839		Trim, Door Compartment		Appelez-nous	-
21	2152335		Divider-door Bin		Appelez-nous	-
22	2163942		Compartment Door, Right Side		Appelez-nous	-
23	2163945		Compartment Door, Left Side		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 6.99
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
25	2171148		Trim, Door		Appelez-nous	-
26	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 7.25
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
28	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
30	2170615		Shelf Bin		Appelez-nous	-
31	1122551		Retainer, Gasket		Appelez-nous	-
32	1122552		Retainer, Gasket		Appelez-nous	-
34	2174751		Reinforcement Dike-mid		Appelez-nous	-
35	1122709		Reinforcement Dike-side		Appelez-nous	-
36	2159300		End Cap (2)				$ 4.83
