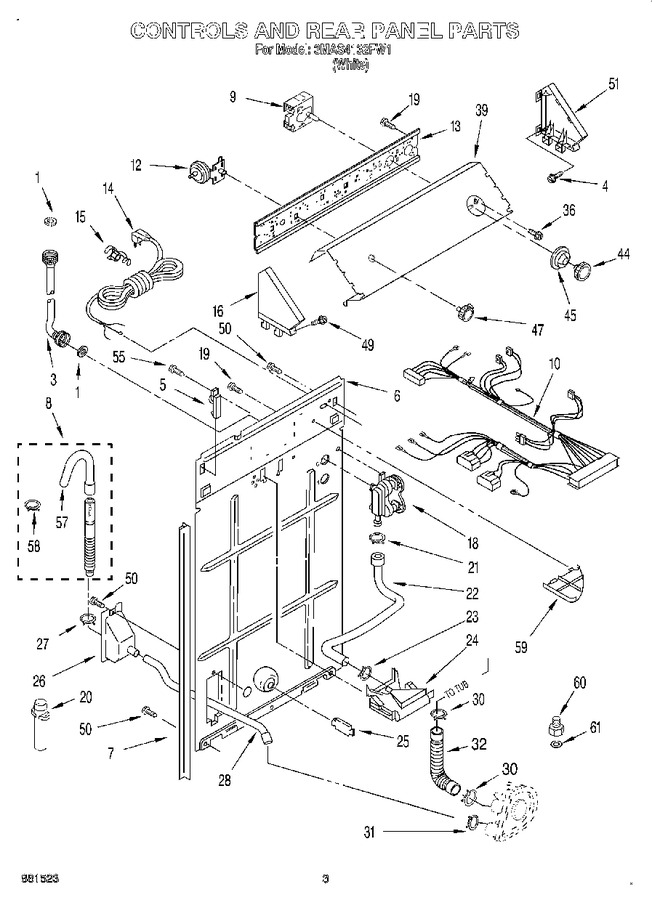

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 8.16 | |||||
| 3 | WP89503 | Hose, Water Inlet (2) ((blue Coupler)) (Replaces: 3949368) |
|
Immediately | $ 24.09 | ||||
| 3 | WP89503 | Hose, Water Inlet (2) ((red Coupler)) (Replaces: 3949369) |
|
Immediately | $ 24.09 | ||||
| 4 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3951123 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 108.98 | ||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 42.09 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 63.94 | ||||
| 9 | 3952851 | Timer, Control (50 Hz.) (motor Not A Service Part) |
|
- | |||||
| 10 | 3952368 | Harness, Wiring (for Detail See Parts Page) |
|
- | |||||
| 12 | W10339228 | Switch, Water Level (Replaces: 3366849) |
|
Immediately | $ 232.22 | ||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 122.00 | |||||
| 14 | WP308544 | Screw (Replaces: 3400030) |
|
Immediately | $ 8.30 | ||||
| 14 | W11170663 | Lock Washer (Replaces: 3400900) |
|
$ 4.54 | |||||
| 14 | 3950972 | Cord, Power |
|
- | |||||
| 14 | W10080180 | Nut (Replaces: 3400901) |
|
$ 14.15 | |||||
| 15 | 387710 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 3951791 | Cap, End (l.h.) |
|
- | |||||
| 18 | WP3360397 | Valve, Water Mixing (Replaces: 3360397) |
|
$ 302.44 | |||||
| 19 | WP3351614 | Screw, 10-24 X 3/8 (2) (Replaces: 90864) |
|
Immediately | $ 7.30 | ||||
| 20 | 3363920A | Adapter-drain Hose (Replaces: 3363920) |
|
$ 9.23 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 8.82 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 3357328) |
|
Immediately | $ 24.78 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 19.85 | ||||
| 26 | WPW10358149 | Connector, Drain Hose (Replaces: 3361809) |
|
Immediately | $ 48.16 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 28 | 3359816 | Hose, Pump To Drain |
|
- | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 31 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 12.31 | |||||
| 32 | 285871 | Hose, Pump To Tub (includes No.30) (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 36 | W10915367 | Screw, Timer Mounting (10-32 X 1) (2) (Replaces: 3400808) |
|
- | |||||
| 39 | 3951546 | Panel, Console |
|
- | |||||
| 44 | WP3957823 | Knob, Timer (Replaces: 3951025) |
|
$ 54.21 | |||||
| 45 | 3948586 | Dial, Timer |
|
- | |||||
| 47 | WP8538957 | Knob, Control (Replaces: 3950757) |
|
$ 58.53 | |||||
| 49 | WP388326 | Screw, 8-18 (2) (panel To Top) (Replaces: 388326) |
|
$ 9.29 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 51 | 3951790 | Cap , End (r.h.) |
|
- | |||||
| 55 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 57 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 97.86 | |||||
| 58 | WP3357331 | Clamp, Drain Hose (Replaces: 3366913) |
|
$ 8.19 | |||||
| 59 | 3950571 | Shield, Inlet |
|
- | |||||
| 60 | WP3357397 | Hose Adapter (Replaces: 3357397) |
|
$ 93.71 | |||||
| 61 | WP3357450 | Washer (Replaces: 3976290) |
|
$ 11.56 |
