SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf

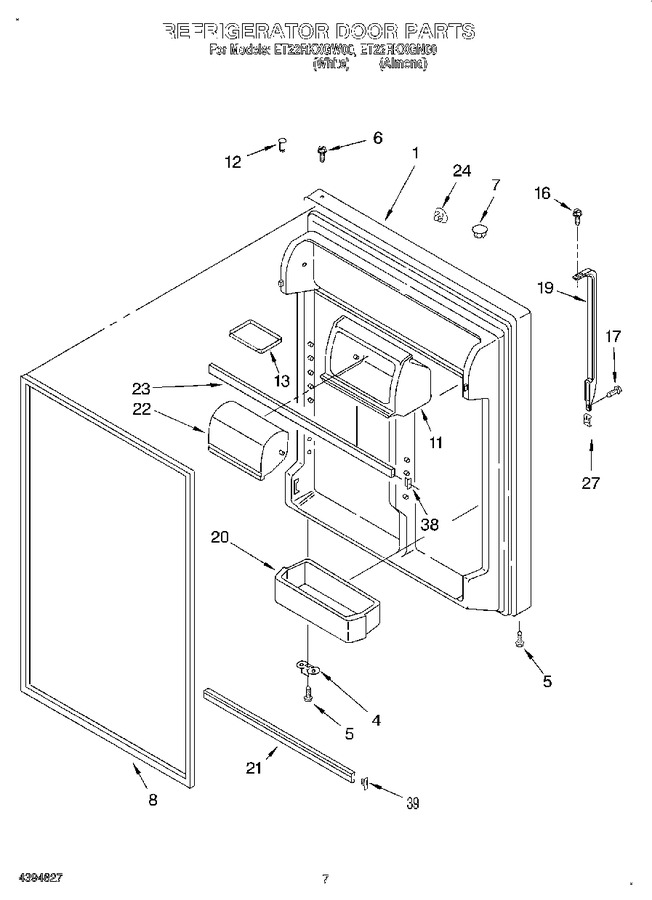

04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183868		Refrigerator Door (includes No.8 & No.12) (white)		Appelez-nous	-
1	2183869		Refrigerator Door (includes No.8 & No.12) (almond)		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	2159061		Door Gasket, Magnetic (mist Beige)			Immediately	$ 183.67
11	2156062		Housing Compartment		Appelez-nous	-
12	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
13	2195388		Tray, Door		Appelez-nous	-
16	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
19	2193351N		Handle (almond)		Appelez-nous	-
19	4388947		Handle (white)   (Replaces: 2193351W)				$ 204.47
20	WP2204813		Bin, Door Shelf (4)   (Replaces: 2200550)			Immediately	$ 81.20
21	WPW10421486		Trim, Door Shelf   (Replaces: 2195948)				$ 114.74
22	2182400		Door, Compartment		Appelez-nous	-
23	2159306		Trim, Door Shelf				$ 53.20
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.77
24	2189008		Hole Plug, Handle (almond)		Appelez-nous	-
27	2193353N		Handle, Trim (almond)		Appelez-nous	-
27	WP2193353W		Handle, Trim (white)   (Replaces: 2193353W)				$ 8.52
38	2177340		Endcap, Door Trim				$ 5.84
39	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
100	2182287		Featurepak (includes 11, 13, 20, 21, 22, 23, 38, 39) Also See Shelf Page.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
