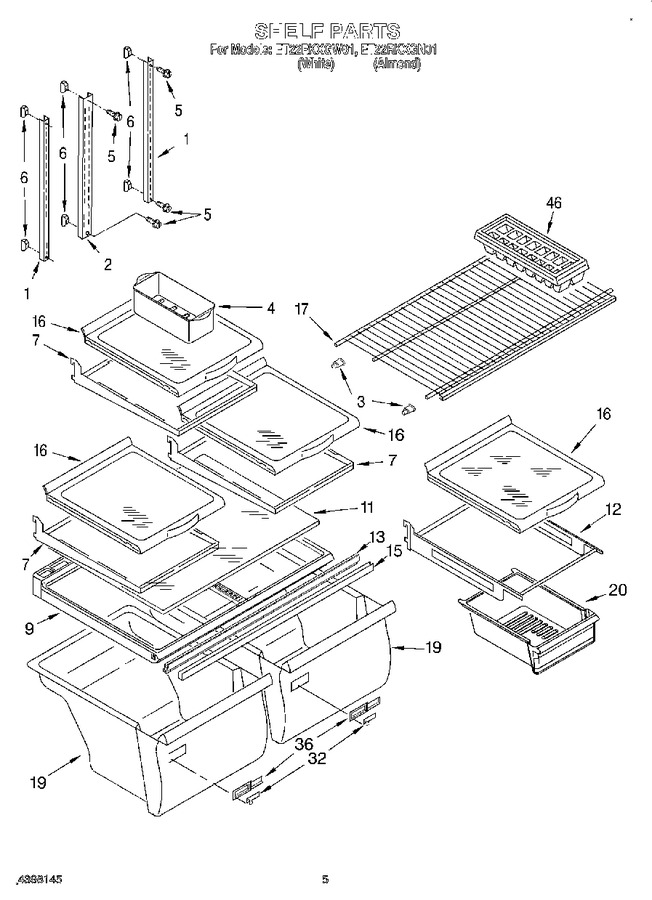

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2163756 | Shelf, Ladder (2) |
|
- | |||||
| 2 | 2163826 | Shelf, Ladder Center |
|
- | |||||
| 3 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.70 | ||||
| 4 | W10136387A | Egg Bin (Replaces: 2182730) |
|
$ 19.54 | |||||
| 5 | W11544659 | Screw (Replaces: 489415) |
|
$ 14.35 | |||||
| 6 | 2189314 | Screw Support |
|
- | |||||
| 7 | 2174447 | Frame Assembly, Shelf (3) |
|
$ 79.10 | |||||
| 9 | WP2314549 | Crisper Cover (Replaces: 2200769) |
|
$ 279.10 | |||||
| 11 | WP2176225 | Glass, Crisper Cover (Replaces: 2176225) |
|
$ 264.41 | |||||
| 12 | 2179717 | Frame Assembly, Meat Shelf |
|
- | |||||
| 13 | 2172684 | Gasket, Crisper Cover |
|
- | |||||
| 15 | WP2172748 | Crisper, Support (Replaces: 2163832) |
|
$ 102.08 | |||||
| 16 | WP999520 | Shelf Assembly, Spillguard (3) (Replaces: 2195501) |
|
$ 273.62 | |||||
| 17 | 2184667 | Shelf, Freezer |
|
- | |||||
| 19 | W10854037 | Pan, Crisper Includes 32,36,43. (Replaces: 2200658) |
|
Immediately | $ 179.19 | ||||
| 20 | WP2218132K | Pan, Meat (Replaces: 2201032) |
|
Immediately | $ 171.43 | ||||
| 32 | WP2176222 | Slide, Crisper (Replaces: 2176222) |
|
$ 27.35 | |||||
| 36 | W11819839 | Body, Humidity Control (Replaces: 2176223) |
|
$ 15.81 | |||||
| 46 | WP841180A | Ice Cube Tray (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 100 | 2182287 | Featurepak (includes 7, 12, 16, 20, 44) Also See Door Pages. |
|
- |
