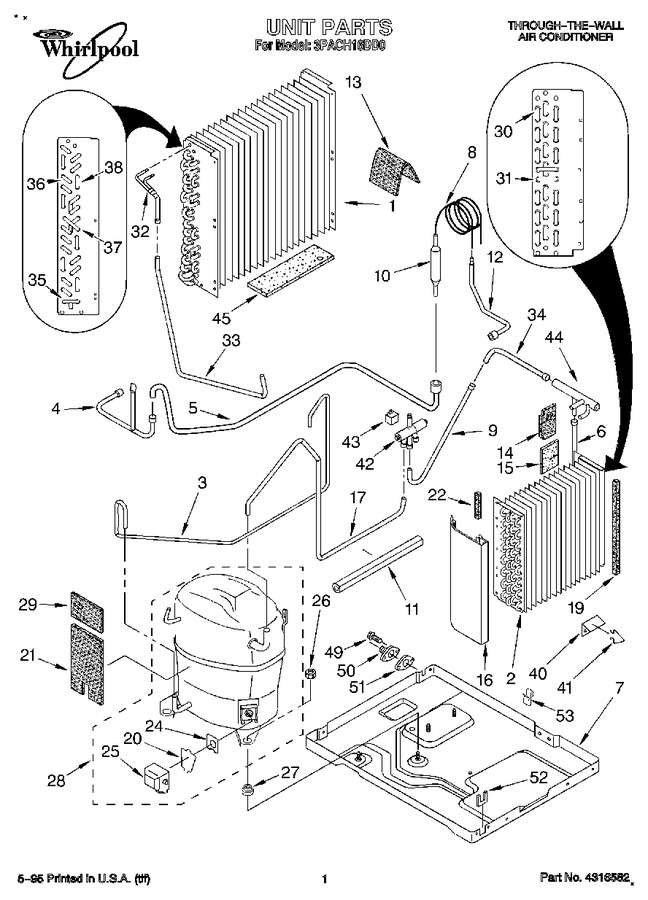

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1181173		Condenser		Appelez-nous	-
2	1181006		Evaporator		Appelez-nous	-
3	1180855		Tube, Valve To Comp. Discharge		Appelez-nous	-
4	1180287		Tube, Process		Appelez-nous	-
5	1180290		Tube, Wet Loop		Appelez-nous	-
6	1180996		Tube, Outlet (row 1)		Appelez-nous	-
7	1180243		Base		Appelez-nous	-
8	1180519		Tube, Restrictor (3 Required)		Appelez-nous	-
9	1180851		Tube, Valve To Evaporator		Appelez-nous	-
10	1180291		Strainer		Appelez-nous	-
11	1162321		Dampener		Appelez-nous	-
12	1180509		Tube, Inlet (row 2)		Appelez-nous	-
12	1180510		Tube, Inlet (row 3)		Appelez-nous	-
12	1181056		Tube, Inlet (top Row 3)		Appelez-nous	-
13	1162616		Seal, Anti-rub		Appelez-nous	-
14	1181062		Seal, Suction Tube		Appelez-nous	-
15	1181064		Seal, Inlet Tube		Appelez-nous	-
16	1180289		Cover, Hair Pin		Appelez-nous	-
17	1180852		Tube, Valve To Compressor Suction		Appelez-nous	-
19	WP854334		Seal   (Replaces: 1180964)				$ 13.94
20	1161083		Retainer, Terminal Cover		Appelez-nous	-
21	1180858		Seal (compressor)		Appelez-nous	-
22	1180971		Seal (cover)		Appelez-nous	-
24	1161082		Gasket, Terminal Cover		Appelez-nous	-
25	1161076		Cover, Terminal		Appelez-nous	-
26	1180339		Nut, 8mm		Appelez-nous	-
27	1165973		Grommet, Compressor Mounting		Appelez-nous	-
28	1180220		Compressor		Appelez-nous	-
29	1180840		Pad, Dampening		Appelez-nous	-
30	855199		Bend, Return (19 Required)		Appelez-nous	-
31	1181009		Bend, Return (2)		Appelez-nous	-
32	1181176		Manifold (2 Circuit)		Appelez-nous	-
33	1180853		Tube, Valve To Condenser		Appelez-nous	-
34	1181016		Tube, Valve To Manifold		Appelez-nous	-
35	1156107		Bend, Return 3-way (1 Required)		Appelez-nous	-
36	708532		Bend, Return (15 Required)		Appelez-nous	-
37	1156329		Bend, Return (1 Required)		Appelez-nous	-
38	708531		Bend, Return (6 Required)		Appelez-nous	-
40	1164141		Anticipator		Appelez-nous	-
41	475577		Clip, Anticipator		Appelez-nous	-
42	1162398		Valve, Reversing (includes No. 43)		Appelez-nous	-
43	1159489		Coil, Solenoid		Appelez-nous	-
44	1181005		Manifold, Suction		Appelez-nous	-
45	1180926		Deflector, Water (foam)		Appelez-nous	-
49	1180668		Screw No.8 X 3/8		Appelez-nous	-
50	1163502		Drain Plug		Appelez-nous	-
51	1164093		Gasket, Drain Plug		Appelez-nous	-
52	1180387		Protector, Cord		Appelez-nous	-
53	642684		Clamp, Tube		Appelez-nous	-
	LIT1180866		Deluxe Remote		Appelez-nous	-
	LIT1180867		Owners Manual/installation Instructions		Appelez-nous	-
	LIT1180862		Wiring Diagram		Appelez-nous	-
