SELECT A DIAGRAM

01 - Unit, Literature


02 - Cabinet


03 - Air Flow


04 - Control Module


05 - Optional

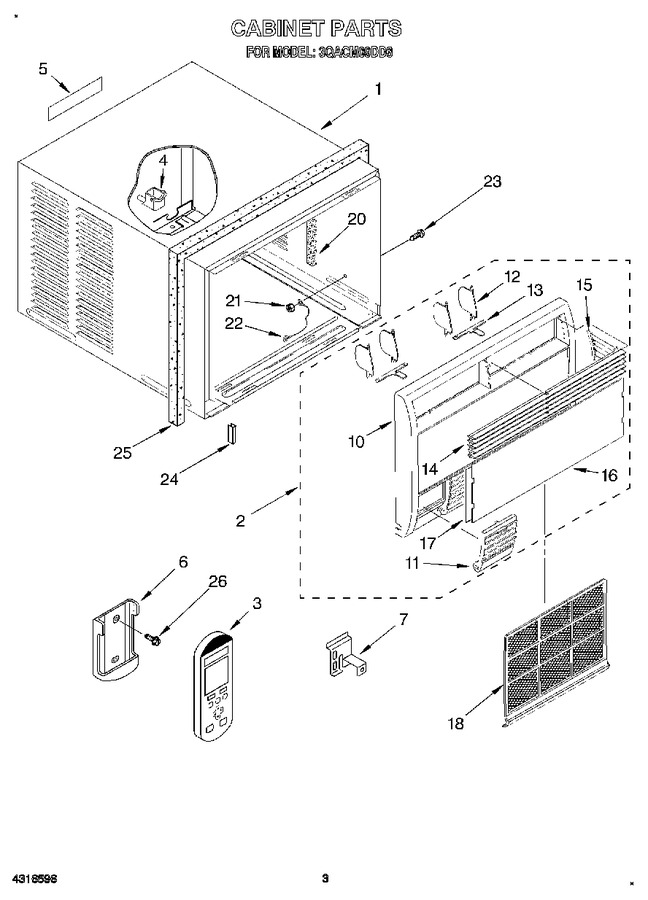

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1180466		Cabinet		Appelez-nous	-
2	1180051		Front (complete)		Appelez-nous	-
3	1181138		Remote, Deluxe		Appelez-nous	-
4	1180061		Cup, Drip		Appelez-nous	-
5	1180604		Label, Cabinet		Appelez-nous	-
6	1181032		Holder, Remote		Appelez-nous	-
7	1180100		Bracket, Front Mounting		Appelez-nous	-
10	1180052		Frame, Front		Appelez-nous	-
11	1180060		Door, Control		Appelez-nous	-
12	1180055		Louver, Vertical (4)		Appelez-nous	-
13	1180056		Link, Vertical Louver		Appelez-nous	-
14	1180058		Louver, Horizontal (5)		Appelez-nous	-
15	1180059		Link, Horizontal		Appelez-nous	-
16	1180077		Cover, Clear		Appelez-nous	-
17	1180341		Paper, Decorative		Appelez-nous	-
18	1180053		Filter		Appelez-nous	-
20	1180110		Seal, Cabinet (left Side)		Appelez-nous	-
20	WP854334		Seal, Cabinet (top)   (Replaces: 1180699)				$ 13.94
21	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 6.47
22	1180417		Wire, Ground		Appelez-nous	-
23	WP488234		Screw, 8-32 X 1/4   (Replaces: 488777)				$ 7.08
24	1180634		Guard, Edge		Appelez-nous	-
25	1180704		Seal, Insulation		Appelez-nous	-
26	1157141		Screw		Appelez-nous	-
