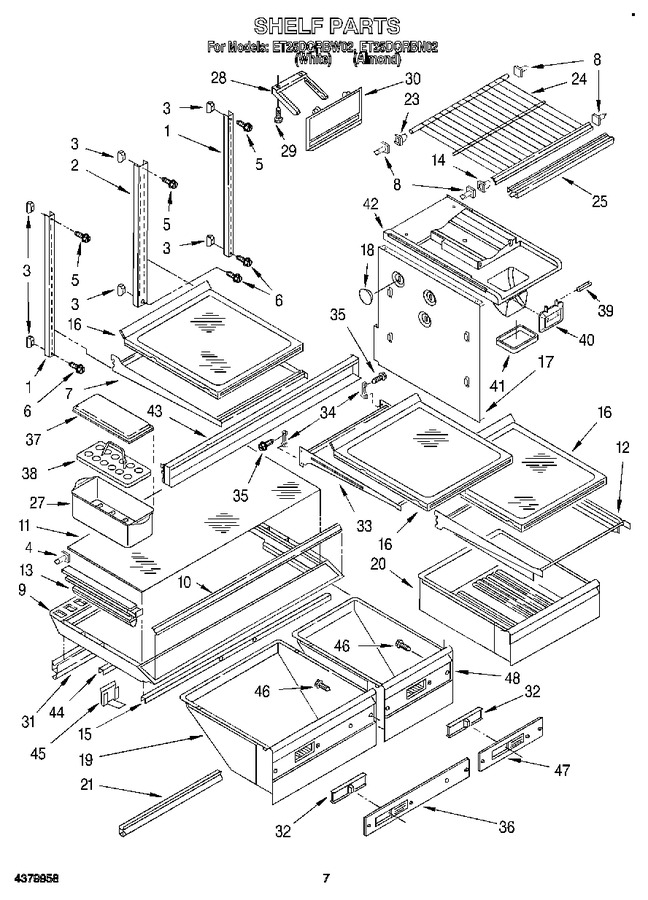

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1118102 | Shelf, Ladder (2) |
|
- | |||||
| 2 | 1118101 | Shelf Ladder, Center |
|
- | |||||
| 3 | 520965 | Screw, Support (6) |
|
$ 31.35 | |||||
| 4 | 1106612 | Shelf Stud (2) |
|
$ 7.56 | |||||
| 5 | 489345 | Screw, |
|
- | |||||
| 6 | WP489474 | Screw (Replaces: 489474) |
|
Immediately | $ 8.55 | ||||
| 7 | 2160307 | Shelf, Cantilever (2) |
|
- | |||||
| 8 | 946355 | Support, Stud |
|
- | |||||
| 9 | 2162920 | Crisper Cover |
|
- | |||||
| 10 | 2162848 | Trim, Crisper Cover |
|
- | |||||
| 11 | 2162982 | Glass, Crisper Cover |
|
- | |||||
| 12 | 2166328 | Shelf Assembly, Cantilever |
|
- | |||||
| 13 | 1118092 | Crisper Track, Center |
|
- | |||||
| 14 | 946356 | Shelf Stud (2) |
|
- | |||||
| 15 | 2179449 | Crisper Support |
|
- | |||||
| 16 | 2160323 | Shelf Assembly, Spillguard |
|
- | |||||
| 17 | 2160620 | Support Wall I/m |
|
- | |||||
| 18 | 2160621 | Anchor-screw I/m |
|
- | |||||
| 19 | 2162859 | Pan, Crisper |
|
- | |||||
| 20 | 2162931 | Pan, Meat |
|
- | |||||
| 21 | 1116665 | Crisper, Gasket Front |
|
- | |||||
| 23 | 819091 | Shelf Stud (2) (Replaces: 946358) |
|
$ 41.66 | |||||
| 24 | 2160694 | Shelf, Freezer (top) (2) |
|
- | |||||
| 25 | 2170855 | Trim, Shelf |
|
- | |||||
| 27 | W10136387A | Bin, Egg (Replaces: 2169933) |
|
$ 19.54 | |||||
| 28 | 1115380 | Slide, Ice Compartment |
|
- | |||||
| 29 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 30 | 2170849 | Door, Ice Compartment |
|
- | |||||
| 31 | 1116666 | Crisper, Gasket Rear |
|
- | |||||
| 32 | 2162849 | Slide, Crisper |
|
- | |||||
| 33 | 2169601 | Slide Shelf Frame, Cantilever |
|
- | |||||
| 34 | 2169608 | Hook, Shelf |
|
- | |||||
| 35 | 489419 | Screw |
|
- | |||||
| 36 | 2162852 | Front, Crisper Pan |
|
- | |||||
| 37 | 2169935 | Cover, Egg Bin |
|
- | |||||
| 38 | WP2177817 | Egg Carrier (Replaces: 2164373) |
|
$ 18.78 | |||||
| 39 | 489395 | Roll Pin |
|
- | |||||
| 40 | 2160613 | Door-platform |
|
- | |||||
| 41 | 2160615 | Gasket-platform |
|
- | |||||
| 42 | 2160612 | Platform-ice Container |
|
- | |||||
| 43 | 2169801 | Slide Track Assy., Shelf |
|
- | |||||
| 44 | 2147047 | Support, Bar Rear |
|
- | |||||
| 45 | 2149078 | Clip |
|
- | |||||
| 46 | 489162 | Screw |
|
- | |||||
| 47 | 2162853 | Front, Crisper Pan |
|
- | |||||
| 48 | 2162858 | Pan, Crisper |
|
- |
