01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts, Optional Parts (not Included)

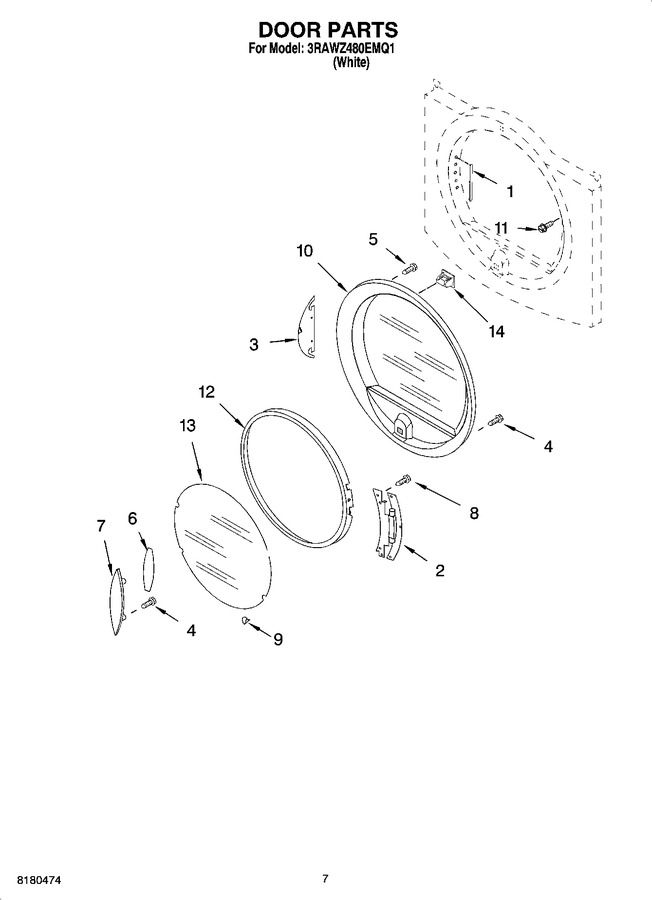

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8563855		Plug, Strip				$ 39.51
2	8519361		Door Hinge Assembly		Appelez-nous	-
3	3980214		Cover, Door Hinge		Appelez-nous	-
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.55
5	342043		Screw, 10-32 X 3/8		Appelez-nous	-
6	8519336		Pad, Door Handle				$ 36.41
7	3980212		Handle, Door		Appelez-nous	-
8	3400224		Screw, 1/4-20 X 1/2				$ 5.27
9	8519374		Plug, Door Handle (2)				$ 51.41
10	8519309		Door Assembly (inner) (includes Illus. 14)		Appelez-nous	-
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	3980213		Door, Outer		Appelez-nous	-
13	8545879		Window		Appelez-nous	-
14	WP3389441		Door Catch Assembly   (Replaces: 3389441)			Immediately	$ 7.29
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	N/A		Accessory Parts		Appelez-nous	-
	8529894		Kit, Hold Down		Appelez-nous	-
