View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts

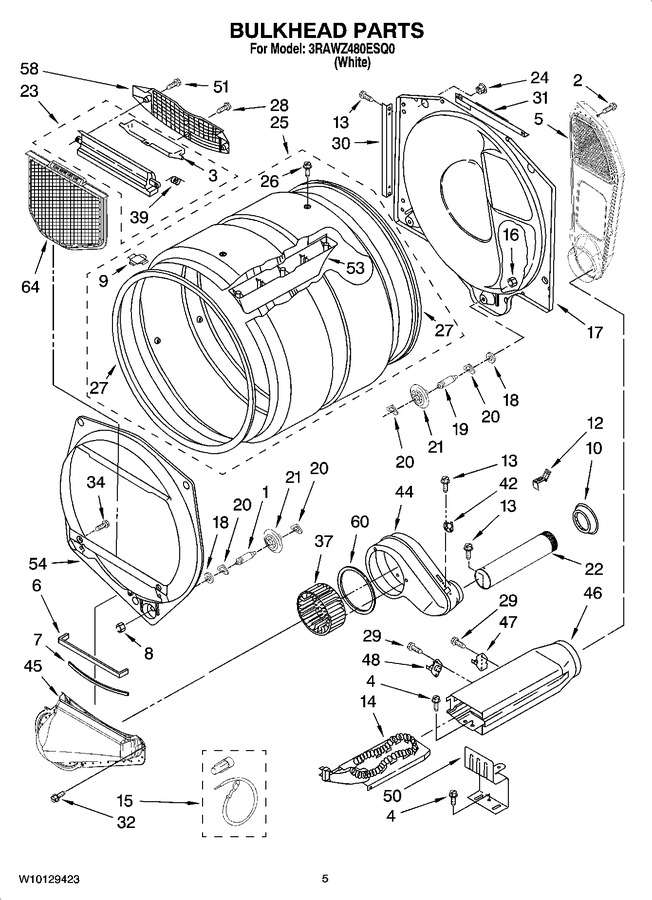

03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 55.99 | ||||
| 2 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10080700) |
|
Immediately | $ 7.54 | ||||
| 3 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 192.52 | ||||
| 4 | W11808444 | Screw, 8-32 X 5/16 (Replaces: 98139) |
|
- | |||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 294.58 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.53 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.53 | ||||
| 8 | W11812294 | Nut,3/8 X 16 (r.h.) (Replaces: W10080210) |
|
$ 11.49 | |||||
| 9 | 8066086 | Drum, Hole Plug |
|
$ 10.16 | |||||
| 10 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 21.06 | |||||
| 12 | W11684573 | Clip, Exhaust Pipe (Replaces: 8572105) |
|
$ 7.35 | |||||
| 13 | W10080820 | Screw, 8-18 X 5/16 |
|
- | |||||
| 14 | WP3387749 | Heater Element (Replaces: 3387749) |
|
Immediately | $ 295.72 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 330.86 | |||||
| 18 | W11236646 | Washer, Support (Replaces: W10080960) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 25.65 | ||||
| 22 | W10119260 | Exhaust Pipe |
|
- | |||||
| 23 | W11129408 | Housing,outlet (Replaces: 3394985) |
|
Immediately | $ 51.20 | ||||
| 24 | 8529007 | Plug, Rear Bulkhead |
|
$ 70.98 | |||||
| 25 | 8543082 | Complete Drum Assembly |
|
- | |||||
| 26 | WPW10080190 | Screw, 11-16 X 3/4 (Replaces: W10080190) |
|
Immediately | $ 9.01 | ||||
| 27 | 280114 | Seal, Drum (Replaces: 697694) |
|
Immediately | $ 63.74 | ||||
| 28 | W10080400 | Screw, 8-18 X 1/2 |
|
- | |||||
| 29 | W10080280 | Screw, 8-18 X 3/8 |
|
- | |||||
| 30 | W10118335 | Channel Bracket, Rear Bulkhead (2) |
|
- | |||||
| 31 | W10118337 | Bracket, Upper Rear Bulkhead |
|
- | |||||
| 32 | W10080380 | Screw, 8-18 X 5/8 |
|
- | |||||
| 34 | W10080590 | Screw, 10-16 X 1/2 |
|
- | |||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 73.78 | ||||
| 39 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.12 | |||||
| 42 | WP3387137 | Thermistor (Replaces: 3387137) |
|
$ 128.88 | |||||
| 44 | W10888146 | Housing, Blower (Replaces: W10119255) |
|
$ 96.11 | |||||
| 45 | WPW10128606 | Lint Duct Assembly (Replaces: W10119263) |
|
$ 195.73 | |||||
| 46 | W10802681 | Heater Box (Replaces: 3392537) |
|
Immediately | $ 180.98 | ||||
| 47 | 279769 | Thermal Cut-off (includes Illus. 48) (Replaces: 3977394) |
|
Immediately | $ 56.57 | ||||
| 48 | WP3390291 | Thermostat, High Limit 250~f (121.1~c) (60 Hz.) (Replaces: 3390291) |
|
Immediately | $ 85.45 | ||||
| 50 | 8066099 | Bracket, Heater Box (Replaces: W10119253) |
|
$ 24.13 | |||||
| 51 | W10080640 | Screw, 10-16 X 1 |
|
- | |||||
| 53 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
$ 86.01 | |||||
| 54 | 8519245 | Bulkhead, Front |
|
- | |||||
| 58 | W11086603 | Grill, Outlet (Replaces: 8299979) |
|
Immediately | $ 33.21 | ||||
| 60 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.44 | ||||
| 64 | W10120998 | Lint, Screen (Replaces: 8066170) |
|
$ 74.66 |
