01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts Optional Parts (not Included)

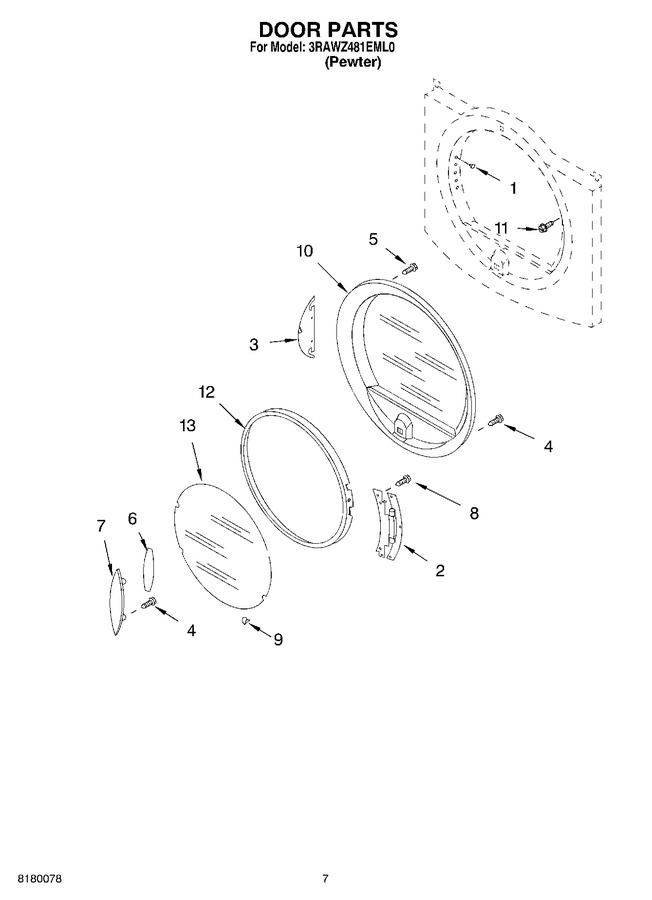

04 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3404417		Plug, Hole (5)		Appelez-nous	-
2	8519361		Door Hinge Assembly		Appelez-nous	-
3	3980214		Cover, Door Hinge		Appelez-nous	-
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.55
5	342043		Screw, 10-32 X 3/8		Appelez-nous	-
6	8519336		Pad, Door Handle				$ 36.41
7	3980212		Handle, Door		Appelez-nous	-
8	3400224		Screw, 1/4-20 X 1/2				$ 5.27
9	8519374		Plug, Door Handle (2)				$ 51.41
10	8519309		Door Assembly (inner)		Appelez-nous	-
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	3980213		Door, Outer		Appelez-nous	-
13	8519449		Window		Appelez-nous	-
