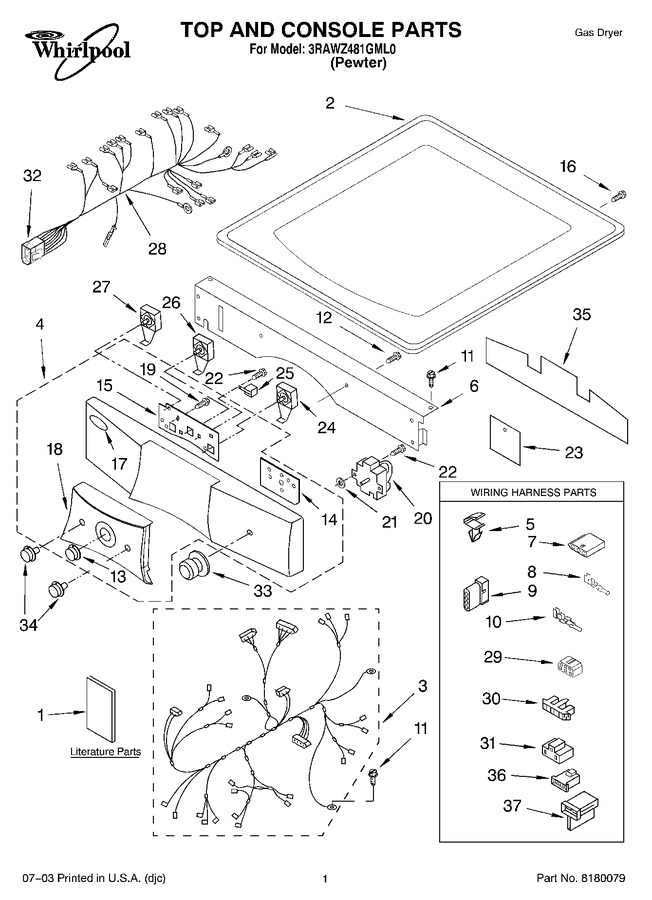

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8543078		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8315975		Literature Parts (installation & User Guide)		Appelez-nous	-
1	LIT8543079		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8545902		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
2	3980096		Top		Appelez-nous	-
3	8543290		Harness, Main		Appelez-nous	-
4	3979741		Panel, Console (includes Illus. 13, 14, 15, 17, 18 & 19)		Appelez-nous	-
5	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
6	3980123		Bracket, Console		Appelez-nous	-
7	353424		Connector, Sensor				$ 18.95
8	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
9	3936144		Plug, Terminal				$ 21.22
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
13	3980121		Button, Push-to-start		Appelez-nous	-
14	3979738		Bracket, Timer		Appelez-nous	-
15	3979743		Bracket, Switch Mounting		Appelez-nous	-
16	8281225		Screw, 8-18 X 1/2		Appelez-nous	-
17	8543319		Medallion		Appelez-nous	-
18	3956540		Console, Center		Appelez-nous	-
19	3400238		Screw, 2-28 X 1/2				$ 12.03
20	3980205		Timer		Appelez-nous	-
21	W11089212		Washer (2)   (Replaces: 3392186)				$ 11.06
22	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
23	8543133		Shield, Timer		Appelez-nous	-
24	W10168170		Switch, Wrinkle Guard   (Replaces: 8316076)				$ 206.68
25	8522378		Buzzer, Mini		Appelez-nous	-
26	WPW10112668		Switch, Push-to-start   (Replaces: 3980425)				$ 128.11
27	W10168169		Switch, Temperature   (Replaces: 3399642)				$ 89.11
28	8543291		Harness, Console		Appelez-nous	-
29	3347243		Connector 6-circuit		Appelez-nous	-
30	3397269		Connector, Timer				$ 25.55
31	3401144		Connector, (pts Relay)				$ 12.81
32	692997		Connector		Appelez-nous	-
33	3980218		Knob, Timer Assembly		Appelez-nous	-
34	3980129		Knob, Control (2)		Appelez-nous	-
35	3980339		Shield, Drip		Appelez-nous	-
36	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
37	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
