SELECT A DIAGRAM

01 - Top And Console Parts

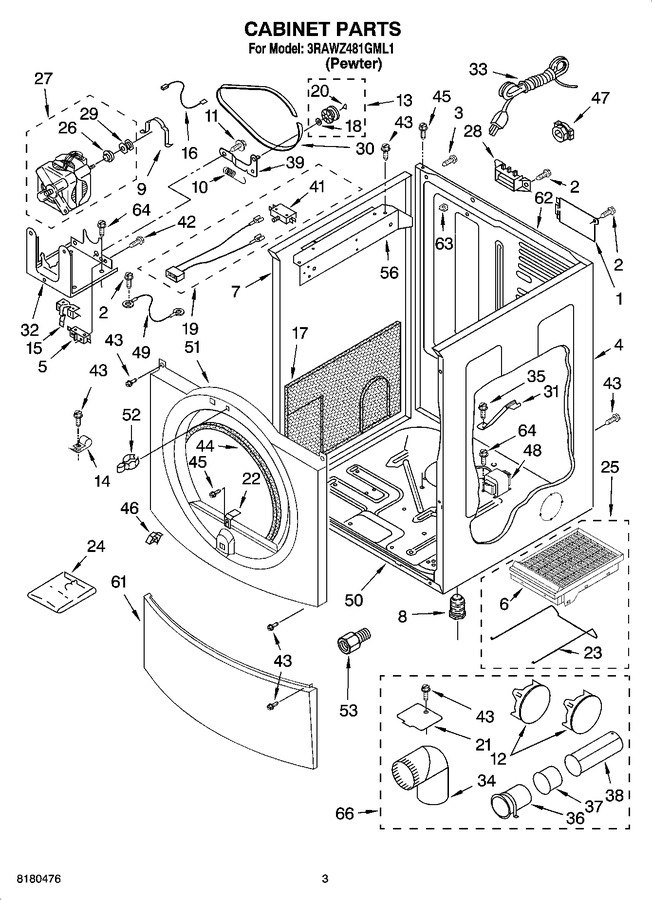

02 - Cabinet Parts


03 - Bulkhead Parts


04 - 3402853 Burner Assembly


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10119283		Cover, Terminal Block   (Replaces: 8317342)				$ 134.77
2	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
3	W10850756		Screw, 10-32 X 5/8 (ground)   (Replaces: 697776)				$ 8.20
4	8519217		Panel, Side (r.h.)		Appelez-nous	-
5	WP8318457		Switch, Broken Belt   (Replaces: 8318457)				$ 44.19
6	8521947		Dry Rack (top)		Appelez-nous	-
7	8519216		Panel, Side (l.h.)		Appelez-nous	-
8	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent   (Replaces: 3979261)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	3978776		Bracket, Gas Pipe		Appelez-nous	-
15	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 34.77
16	3394081		Wire, Belt Switch				$ 37.57
17	8528076		Sound Panel		Appelez-nous	-
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 8.36
19	8543119		Wire, Jumper (includes Illus. 41)		Appelez-nous	-
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 9.68
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 9.41
22	8529053		Ramp, Door				$ 51.37
23	8521961		Dry Rack Support		Appelez-nous	-
24	8541503		Kit, Stack Assembly			Immediately	$ 47.74
25	8521950		Dry Rack Assembly		Appelez-nous	-
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
27	W10416573		Motor, Assembly 50 Hz.   (Replaces: 3404470)				$ 250.80
28	WP3397659		Terminal Block   (Replaces: 3397659)				$ 24.17
29	3402548		Pulley 50 Hz.		Appelez-nous	-
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	3977712		Cord, Power		Appelez-nous	-
34	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
35	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 3395532)				$ 95.95
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 3395534)				$ 82.90
38	WP8563749		Exhaust Pipe (long)   (Replaces: 3395535)				$ 93.24
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
41	8541808		Switch, Door		Appelez-nous	-
42	3400934		Screw, 6-20 X 1 1/16		Appelez-nous	-
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
46	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
47	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 7.77
48	W10851673		Transformer   (Replaces: 3977633)				$ 417.47
49	340025		Wire, Ground		Appelez-nous	-
50	8519207		Base, Cabinet		Appelez-nous	-
51	8562170		Front Panel		Appelez-nous	-
52	279570		Strike, Door(2)   (Replaces: 696144)			Immediately	$ 8.89
53	WP8316063		Adapter, Gas Inlet   (Replaces: 8316063)				$ 145.91
56	8519273		Bracket, Control		Appelez-nous	-
61	3980095		Toe, Panel				$ 1,090.59
62	8543118		Panel, Rear		Appelez-nous	-
63	WP692400		Nut, Push-in   (Replaces: 692400)			Immediately	$ 8.02
64	3400097		Screw, 10-24 X 3/8		Appelez-nous	-
66	W10470674		Grey   (Replaces: 279969)			Immediately	$ 85.28

    View Diagram in Separate Window       Print Part List
