SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Ice Maker, Optional


06 - Shelf

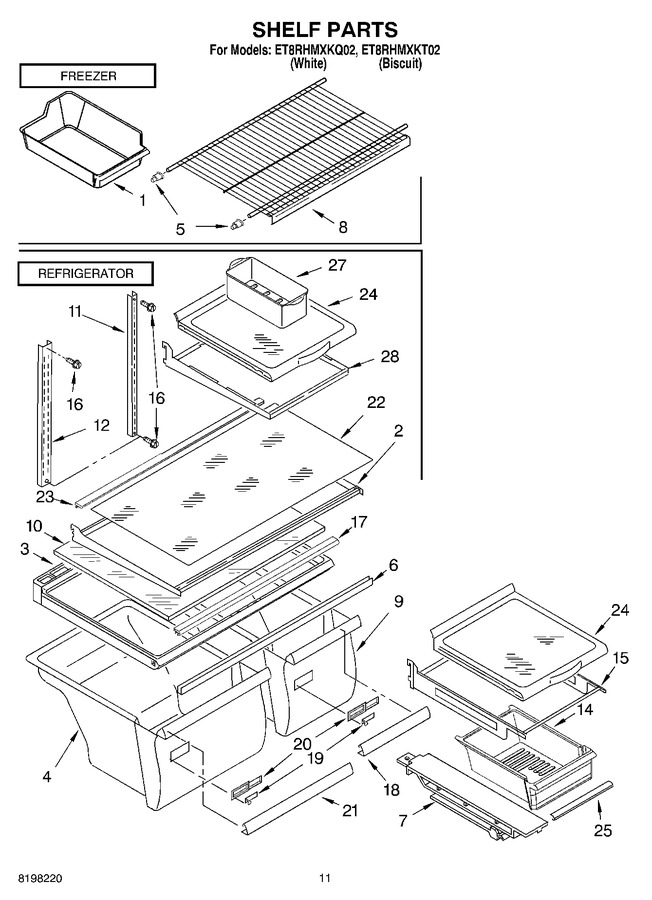

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254352A		Ice Cube Pan   (Replaces: 2176219)				$ 52.78
2	2201103		Shelf, Full Cantilever				$ 88.86
3	WP2314548		Cover, Crisper   (Replaces: 2221752)				$ 233.85
4	W10854037		Crisper Pan Includes Items (19,20,21)   (Replaces: 2218130)			Immediately	$ 161.27
5	WPW10130299		Shelf, Cup Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 91.87
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 32.83
8	WP2176275		Shelf   (Replaces: 2176275)				$ 111.06
9	W10856580		Crisper Pan Includes Items (18,19,20)   (Replaces: 2218129)			Immediately	$ 159.33
10	WP2169921		Insert   (Replaces: 2169921)				$ 233.04
11	2210522		Shelf, Ladder (2)				$ 44.10
12	2202821		Shelf, Ladder Center		Appelez-nous	-
14	WP2218127K		Meat Pan   (Replaces: 2218127)				$ 132.12
15	2205161		Frame Assembly, Meat Shelf				$ 102.93
16	WP489478		Screw   (Replaces: 489478)				$ 7.36
17	2188690		Trim, Shelf (front)		Appelez-nous	-
18	2195340		Trim, Crisper Pan				$ 7.07
19	WP2176222		Slide, Crisper   (Replaces: 2176222)				$ 27.35
20	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 14.23
21	WP2195341		Trim, Crisper   (Replaces: 2195341)				$ 78.00
22	2177824		Glass, Full Shelf				$ 139.59
23	WP2188689		Trim, Shelf (rear)   (Replaces: 2188688)				$ 109.40
24	2195346		Shelf, Assembly Spillgaurd		Appelez-nous	-
25	2176356		Trim, Meat Pan		Appelez-nous	-
27	W10136387A		Egg Bin   (Replaces: 2216624)				$ 17.59
28	833938		Kit, Terminal Connector				$ 7.62
28	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
28	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
28	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
28	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
28	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
28	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
28	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
28	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
28	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
28	350942		Primer, White (12 Oz. Spray Can)				$ 84.73
28	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
28	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
28	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 24.99
28	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
28	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
28	1117510		Torx Key				$ 5.84
28	2174446		Shelf, Cantilever				$ 106.01
28	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
28	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
28	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
28	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
28	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
28	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
