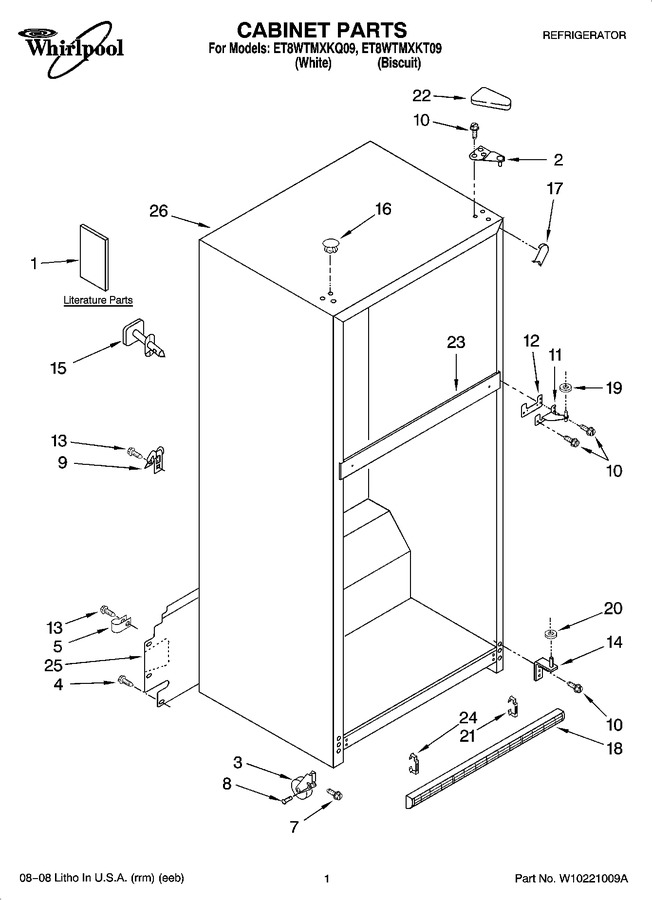

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677969 | Do-it-yourself Manual, Ref./fzr. |
|
$ 30.30 | |||||
| 1 | W10142142 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10177680 | Energy Label |
|
- | |||||
| 1 | W10131409 | Use & Care Guide (bilingual) |
|
- | |||||
| 1 | W10131417 | Use & Care Guide (trilingual) |
|
- | |||||
| 1 | 2225623 | Modular Icemaker Service Sheet |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 107.48 | ||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 31.28 | ||||
| 4 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 5 | WP488366 | Clamp, Tube (water Supply Line) (Replaces: 489385) |
|
$ 10.73 | |||||
| 7 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 6.80 | |||||
| 8 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 9 | 549193 | Clamp-cord |
|
$ 12.65 | |||||
| 10 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 11 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 12 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 13 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.54 | ||||
| 14 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 8.35 | |||||
| 16 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 20.58 | |||||
| 16 | 2200924 | Hole Plug (6) (biscuit) |
|
- | |||||
| 17 | WPW10283959 | Corner Filler (2) (white) (Replaces: 2201014) |
|
$ 7.39 | |||||
| 17 | W10283958 | Corner Filler (2) (biscuit) (Replaces: 2200926) |
|
$ 23.07 | |||||
| 18 | WP2254386 | Grille (includes Illus. 21 & 24) (white) (Replaces: 2254386) |
|
$ 89.33 | |||||
| 18 | WP2254386 | Grille (includes Illus. 21 & 24) (biscuit) (Replaces: 2254389) |
|
$ 89.33 | |||||
| 19 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 20 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 21 | 2254385 | Clip-grille |
|
$ 79.98 | |||||
| 22 | 2213364 | Cover-hinge (biscuit) |
|
$ 16.82 | |||||
| 22 | WP2213360 | Cover-hinge (white) (Replaces: 2213360) |
|
$ 18.17 | |||||
| 24 | 2189356 | Clip-grille |
|
$ 5.70 | |||||
| 25 | 2254578 | Cover, Unit |
|
$ 46.75 |
