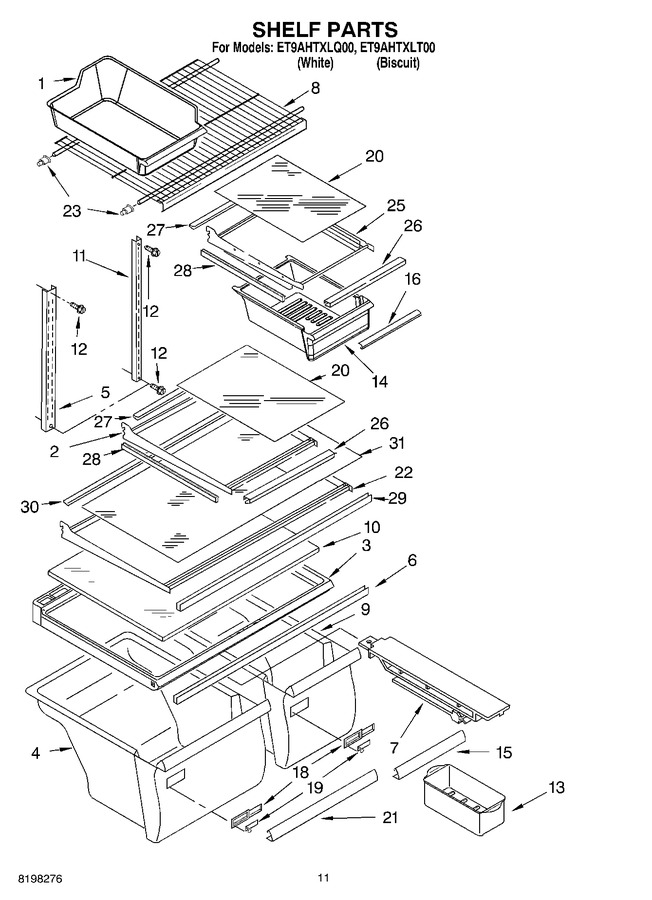

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2254352A | Ice Bucket (Replaces: 2176219) |
|
$ 52.78 | |||||
| 2 | 2201107K | Shelf Assembly, Cantilever (includes 20, 26, 27 And 28) |
|
$ 169.02 | |||||
| 3 | WP2314548 | Cover, Crisper (Replaces: 2200768) |
|
$ 233.85 | |||||
| 4 | W10854037 | Crisper Pan (includes 18, 19, And 21) (Replaces: 2218139) |
|
Immediately | $ 161.27 | ||||
| 5 | 2202821 | Shelf, Ladder |
|
- | |||||
| 6 | WP2172748 | Support, Crisper Cover (Replaces: 2172541) |
|
$ 91.87 | |||||
| 7 | WP2163835 | Track, Crisper (Replaces: 2163835) |
|
Immediately | $ 32.83 | ||||
| 8 | WP2176275 | Shelf (Replaces: 2176275) |
|
$ 111.06 | |||||
| 9 | W10856580 | Crisper Pan (includes 15, 18, And 19) (Replaces: 2218138) |
|
Immediately | $ 159.33 | ||||
| 10 | WP2169921 | Glass, Crisper Cover (Replaces: 2221693) |
|
$ 233.04 | |||||
| 11 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 12 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 13 | W10136387A | Egg Bin (Replaces: 2216624) |
|
$ 17.59 | |||||
| 14 | WP2218127K | Meat Pan (Replaces: 2218127) |
|
$ 132.12 | |||||
| 15 | 2195340 | Trim, Crisper Pan |
|
$ 7.07 | |||||
| 16 | 2176356 | Trim, Meat Pan |
|
- | |||||
| 18 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 14.23 | |||||
| 19 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 20 | 2200985 | Glass, Half Shelf |
|
- | |||||
| 21 | WP2195341 | Trim, Crisper Pan (Replaces: 2195341) |
|
$ 78.00 | |||||
| 22 | 2201137 | Shelf Assembly, Cantilever (includes 29, 30, And 31) |
|
- | |||||
| 23 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 25 | 2201111 | Shelf Assembly, Meat Pan (includes 20, 26, 27 And 28) |
|
$ 168.49 | |||||
| 26 | 2188525 | Trim, Shelf Front |
|
- | |||||
| 27 | WP2188689 | Trim, Shelf Rear (Replaces: 2188520) |
|
$ 109.40 | |||||
| 28 | 2188517 | Trim, Shelf Side |
|
$ 54.51 | |||||
| 29 | 2188690 | Trim, Shelf (front) |
|
- | |||||
| 30 | WP2188689 | Trim, Shelf Side (Replaces: 2188688) |
|
$ 109.40 | |||||
| 31 | 2177824 | Glass, Cantilever |
|
$ 139.59 |
