01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts


07 - Water Dispenser Parts, Optional Parts

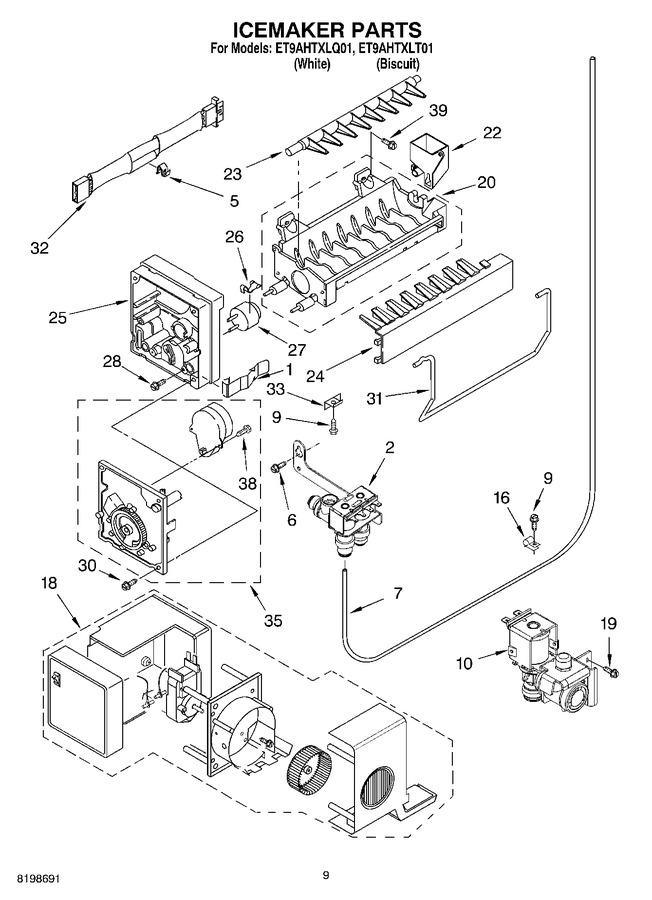

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2204881		Clip, Retainer		Appelez-nous	-
2	WP2188785		Valve (double), Solenoid   (Replaces: 2219592)				$ 211.21
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 9.99
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
7	W10823511		Tube, Water   (Replaces: 2210514)			Immediately	$ 29.17
9	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 7.36
10	WPW10498990		Valve Solenoid   (Replaces: 2219594)			Immediately	$ 189.62
16	WP488366		Clamp, Tube   (Replaces: 489385)				$ 10.73
18	2221674		Max Ice Assembly		Appelez-nous	-
19	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
20	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: 628228)				$ 210.17
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 48.38
23	WP627843		Ejector   (Replaces: 2194711)				$ 79.00
24	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 81.32
25	WP2195914		Support   (Replaces: 2194712)				$ 98.82
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 10.44
27	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 628397)				$ 103.18
28	8533917		Screw   (Replaces: 489322)				$ 12.64
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
31	WP627792		Shut Off Arm   (Replaces: 627792)				$ 79.88
32	WP2187464		Harness, Wiring   (Replaces: 2187464)				$ 117.72
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 30.40
35	W10190935		Module Assembly (includes Item 38)   (Replaces: 628399)			Immediately	$ 122.65
38	489136		Screw (3-24 X 23/64)				$ 9.72
39	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.13
99	4317943		Complete Icemaker Assembly			Immediately	$ 165.11

    View Diagram in Separate Window       Print Part List
