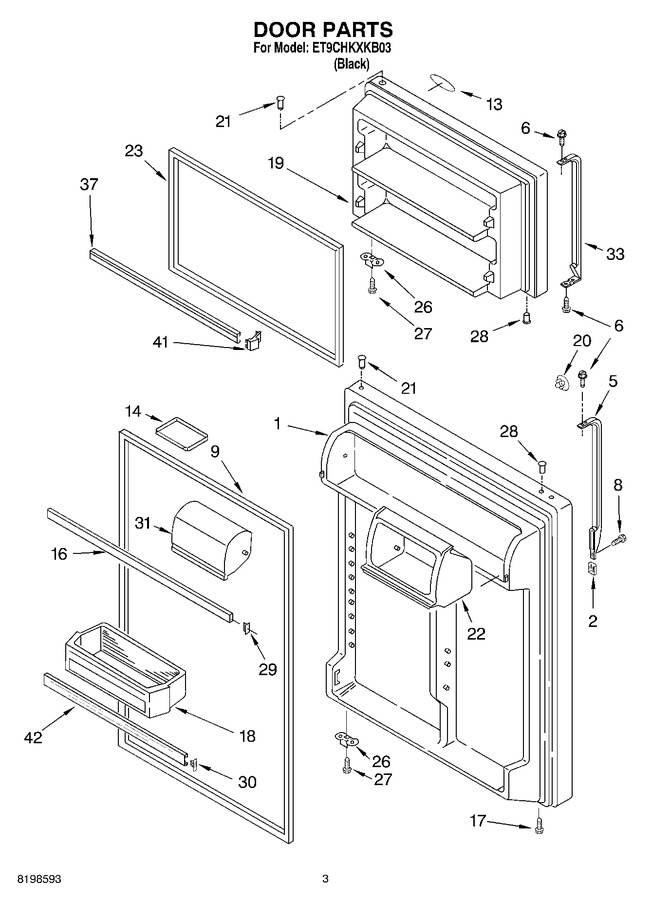

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200614		Refrigerator Door (includes 9 & 21) (black)		Appelez-nous	-
2	2193353B		Cover, Endcap (black)				$ 5.85
5	4388950		Handle Center (black)   (Replaces: 2213112B)				$ 212.23
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.36
9	2177305		Door Gasket, Magnetic (black)   (Replaces: 2202881)				$ 261.06
13	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 83.86
14	2159302		Tray, Door				$ 42.08
16	2159312		Trim-door Shelf				$ 47.75
17	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
18	2204811		Door Bin (3)				$ 35.90
19	2200620		Freezer Door Panel (black)		Appelez-nous	-
20	WP2189009		Hole Plug (black)   (Replaces: 2189009)				$ 6.85
21	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
22	2210566		Housing Compartment				$ 65.25
23	2177304		Door Gasket, Magnetic (black)   (Replaces: 2214968)				$ 292.22
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 12.03
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
28	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 21.79
29	2177340		Endcap, Door Trim				$ 5.84
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
31	2218109		Door, Compartment				$ 33.66
33	4388950		Handle, F.c. (black)   (Replaces: 2213111B)				$ 212.23
37	2195946		Trim-door (2)				$ 46.58
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 11.86
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 122.63
