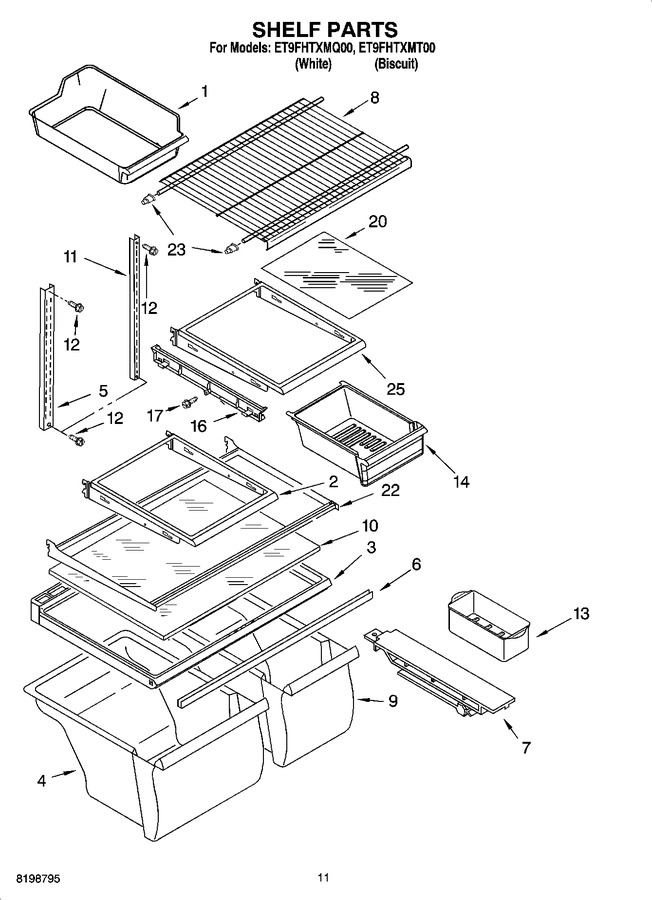

06 - Shelf Parts
07 - Water Dispenser Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2254352A | Ice Bucket (Replaces: 2254352) |
|
$ 52.78 | |||||
| 2 | 2214908 | Frame Assembly |
|
- | |||||
| 3 | WP2314548 | Cover, Crisper (Replaces: 2221752) |
|
$ 233.85 | |||||
| 4 | W10854037 | Crisper Pan (Replaces: 2218124) |
|
Immediately | $ 161.27 | ||||
| 5 | 2202821 | Shelf, Ladder |
|
- | |||||
| 6 | WP2172748 | Support, Crisper Cover (Replaces: 2172541) |
|
$ 91.87 | |||||
| 7 | WP2163835 | Track, Crisper (Replaces: 2163835) |
|
Immediately | $ 32.83 | ||||
| 8 | WP2176275 | Shelf (Replaces: 2176275) |
|
$ 111.06 | |||||
| 9 | W10856580 | Crisper Pan (Replaces: 2218123) |
|
Immediately | $ 159.33 | ||||
| 10 | WP2169921 | Glass, Crisper Cover (Replaces: 2221693) |
|
$ 233.04 | |||||
| 11 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 12 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 13 | W10136387A | Egg Bin (Replaces: 2216624) |
|
$ 17.59 | |||||
| 14 | WP2218127K | Meat Pan (Replaces: 2218127K) |
|
$ 132.12 | |||||
| 16 | 2214892 | Slide Pan |
|
- | |||||
| 17 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.36 | ||||
| 20 | 2214912 | Glass, Half Shelf |
|
- | |||||
| 22 | 2214908K | Shelf Assembly |
|
- | |||||
| 23 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 25 | 2214910 | Pan Shelf, Cantilever |
|
$ 109.57 |
