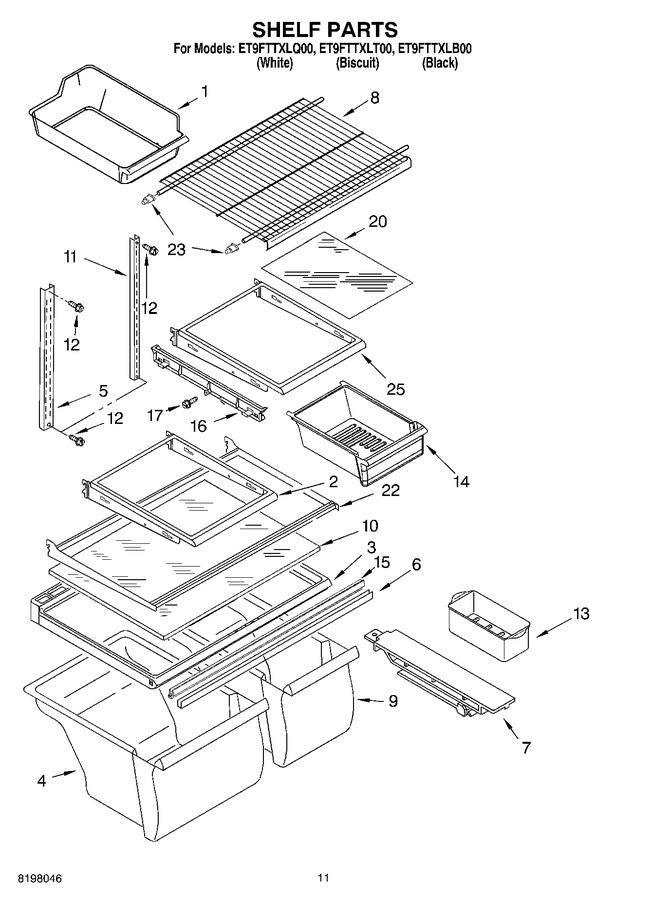

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254352A		Ice Bucket   (Replaces: 2176219)				$ 52.78
2	2214908		Frame Assembly		Appelez-nous	-
3	WP2314548		Cover, Crisper   (Replaces: 2221752)				$ 233.85
4	W10854037		Crisper Pan   (Replaces: 2218124)			Immediately	$ 161.27
5	2202821		Shelf, Ladder		Appelez-nous	-
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 91.87
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 32.83
8	WP2176275		Shelf   (Replaces: 2176275)				$ 111.06
9	W10856580		Crisper Pan   (Replaces: 2218123)			Immediately	$ 159.33
10	WP2169921		Glass, Crisper Cover   (Replaces: 2221693)				$ 233.04
11	2210522		Shelf, Ladder (2)				$ 44.10
12	WP489478		Screw   (Replaces: 489478)				$ 7.36
13	W10136387A		Egg Bin   (Replaces: 2216624)				$ 17.59
14	WP2218127K		Meat Pan   (Replaces: 2218127K)				$ 132.12
15	2172683		Gasket, Crisper Cover		Appelez-nous	-
16	2214892		Slide Pan		Appelez-nous	-
17	WP3400065		Screw   (Replaces: 3400065)			Immediately	$ 7.36
20	2214912		Glass, Half Shelf		Appelez-nous	-
22	2214908K		Shelf Assembly		Appelez-nous	-
23	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
25	2214910		Pan Shelf, Cantilever				$ 109.57
