SELECT A DIAGRAM

01 - Top And Cabinet Parts

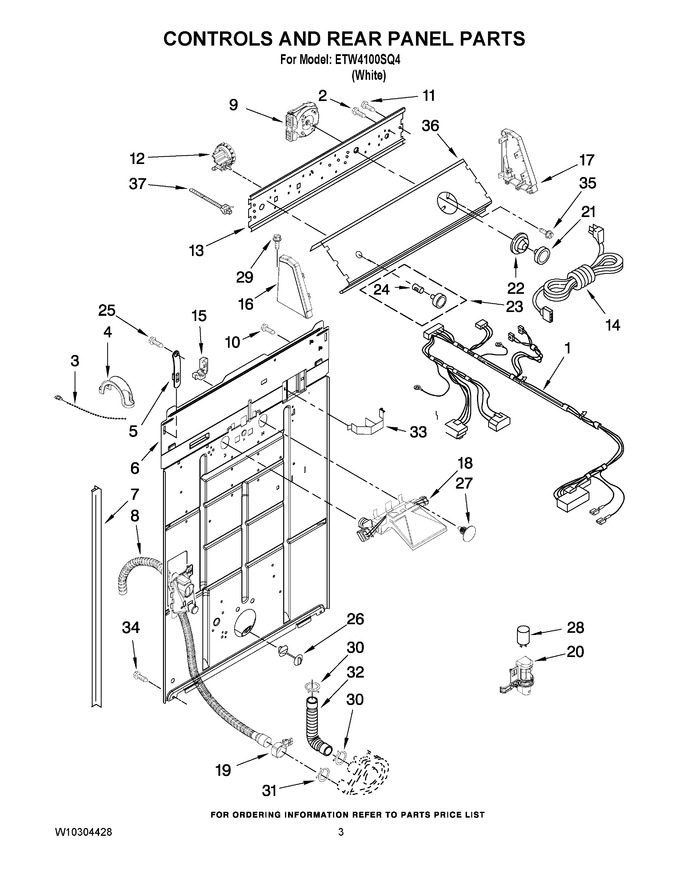

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10220034		Harness, Wiring (for Detail See Pages 9 & 10)				$ 267.78
2	3400073		Screw, Ground		Appelez-nous	-
3	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.47
4	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.53
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.35
6	WPW10194450		Panel, Rear   (Replaces: W10194450)				$ 318.11
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 24.81
8	WPW10189267		Drain Hose Assembly (includes Item 19)   (Replaces: W10189267)				$ 63.52
9	WPW10201447		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: W10201447)				$ 304.52
10	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.57
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
12	WPW10231403		Switch, Water Level   (Replaces: W10231403)				$ 155.35
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 109.80
14	3956162		Cord, Power (includes Item 15)		Appelez-nous	-
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 78.81
17	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 78.81
18	WPW10140918		Valve, Water Inlet W/vacuum Break   (Replaces: W10140918)				$ 207.16
19	8541668		Clamp, Hose				$ 20.09
20	8318046		Clip, Capacitor				$ 79.31
21	WP8538949		Knob, Timer   (Replaces: 8538949)				$ 55.77
22	WP8538955		Dial, Timer   (Replaces: 8538955)				$ 50.11
23	WP8538957		Knob, Control   (Replaces: 8538957)				$ 52.68
24	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.38
25	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.72
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 17.87
27	W10000080		Clip, Push-in Retainer		Appelez-nous	-
28	WP8572717		Capacitor, Motor Start   (Replaces: 8572717)			Immediately	$ 87.84
29	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 8.36
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.72
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 7.93
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.09
33	8055003		Clip, Harness & Pressure Hose				$ 36.24
34	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.43
35	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.93
36	W10200866		Panel, Console		Appelez-nous	-
37	W10231379		Cable Tie		Appelez-nous	-
