View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts

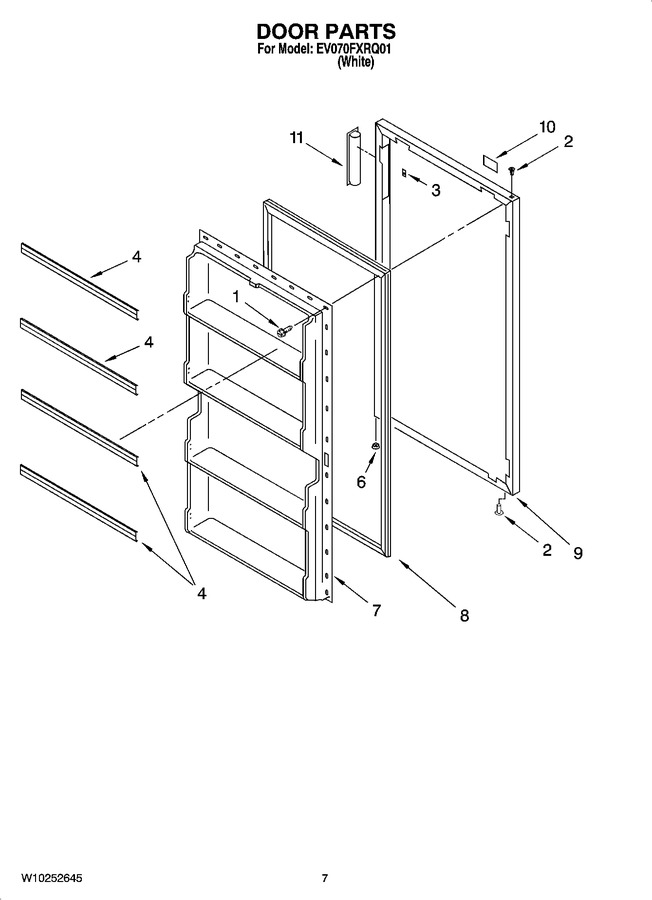

04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390598 | Screw Kit (50 Pcs) (Replaces: 4357290) |
|
$ 19.84 | |||||
| 2 | 4390731 | Bushing, Hinge |
|
$ 19.69 | |||||
| 3 | 4356306 | Clip, Handle |
|
$ 7.36 | |||||
| 4 | 8210418 | Rail, Door Shelf (4) |
|
- | |||||
| 6 | 3-24898-007 | Plug, Vent (Replaces: 4357067) |
|
$ 10.21 | |||||
| 7 | 8210417 | Door, Interior (includes Item 1) |
|
$ 236.66 | |||||
| 8 | 8210338 | Gasket, Door (includes Item 1) |
|
$ 160.23 | |||||
| 9 | 8210364 | Door, Exterior |
|
- | |||||
| 10 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 83.86 | ||||
| 11 | 4390641 | Handle (includes Item 3) |
|
- | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 218.83 | ||||||
| WP72107 | Brush Touch-up Kit (almond) (Replaces: 72107) |
|
$ 16.93 | ||||||
| 350956 | Enamel, Almond (13 Oz. Spray Can) |
|
$ 48.61 | ||||||
| 798883 | Enamel (almond) (1 Qt. Uncut) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 86.78 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 |
