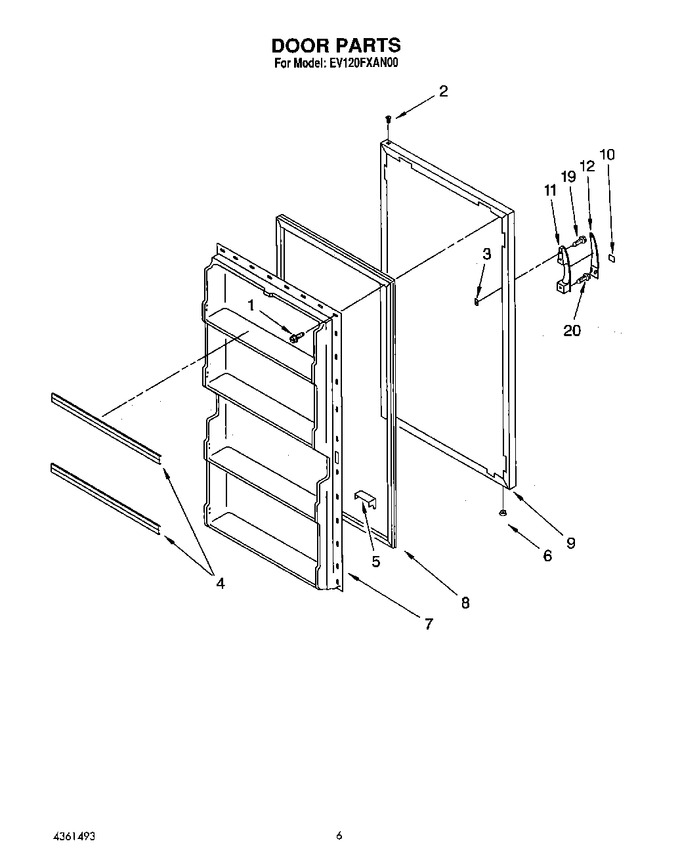

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 4356810)				$ 7.36
2	4356811		Hinge, Bushing		Appelez-nous	-
3	4356812		Anchor, Screw		Appelez-nous	-
4	4356877		Door Shelf Trim (4)		Appelez-nous	-
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 10.21
7	4356878		Interior Door		Appelez-nous	-
8	4357002		Door Gasket		Appelez-nous	-
9	4356998		Exterior Door (almond)		Appelez-nous	-
10	4356940		Nameplate		Appelez-nous	-
11	4356895		Handle, Chrome		Appelez-nous	-
12	4356896		Handle, Insert (almond)		Appelez-nous	-
19	302717		Screw, Handle		Appelez-nous	-
20	488839		Screw Handle Lower		Appelez-nous	-
