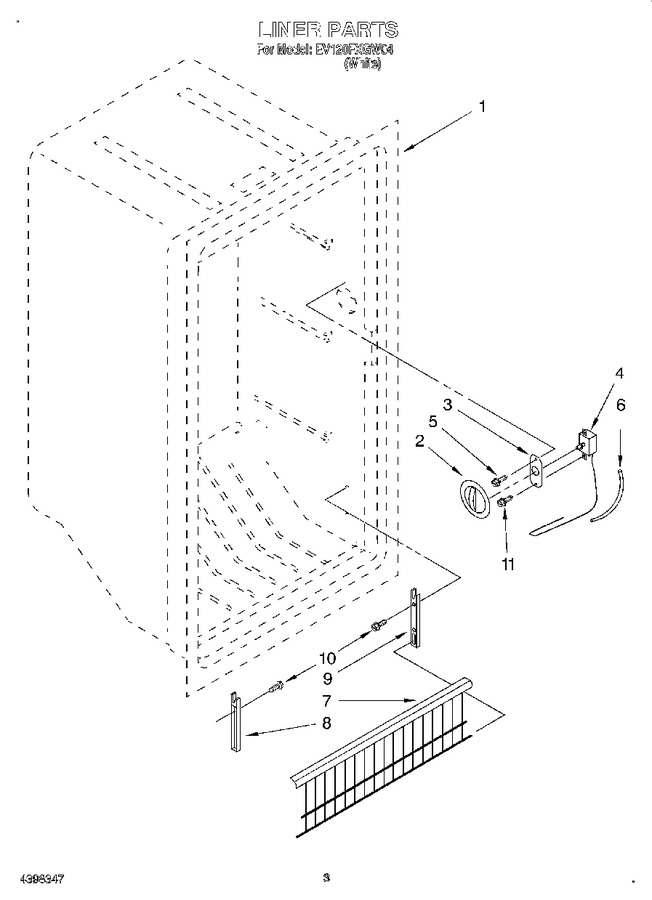

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	4357040		Control Knob		Appelez-nous	-
3	1-81154		Control Plate   (Replaces: 4357041)				$ 13.50
4	4356808		Thermostat		Appelez-nous	-
5	WPW10068250		Screw   (Replaces: 4357042)				$ 3.84
6	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 7.52
7	4357179		Gate		Appelez-nous	-
8	4356889		Support, Fence, (l.h.)		Appelez-nous	-
9	4356890		Support, Fence, (r.h.)		Appelez-nous	-
10	4356891		Screw		Appelez-nous	-
11	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
11	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
11	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
11	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
11	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
11	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 164.39
11	W11233072		Screw   (Replaces: 4357043)			Immediately	$ 13.25
11	798883		Enamel (almond) (1 Qt. Uncut)		Appelez-nous	-
11	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
