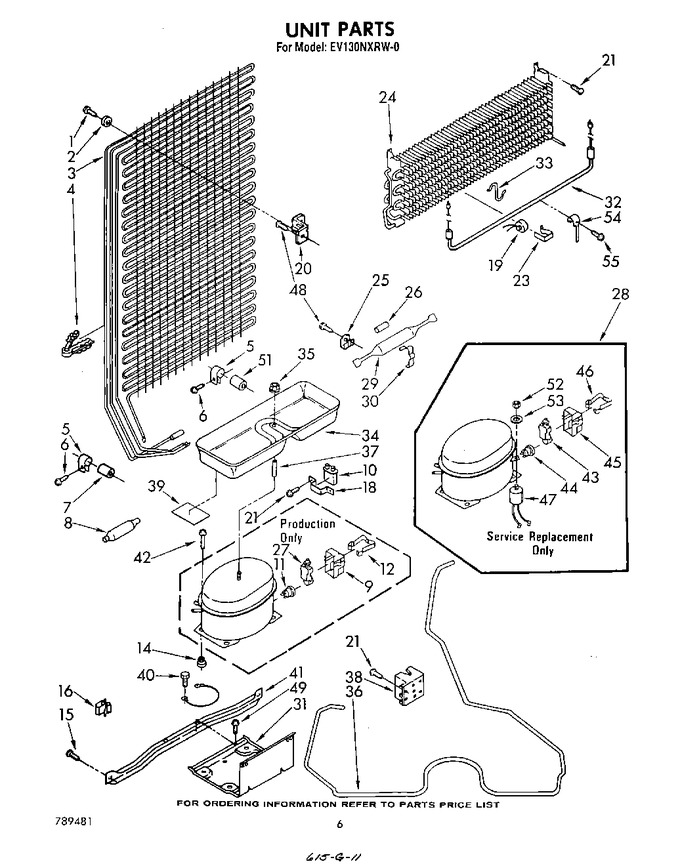

02 - Door , Lit/optional
03 - Cabinet
04 - Shelf
05 - Unit
06 - Liner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 487888 | Screw, 8 X 7/8 (2) |
|
- | |||||
| 2 | 204349 | Bumper (2) |
|
- | |||||
| 3 | 1106956 | Condenser & Precooler Assembly |
|
- | |||||
| 4 | 938232 | Clip, Tube (2) |
|
- | |||||
| 5 | 510716 | Tube Clamp |
|
- | |||||
| 6 | WPW10141625 | Screw, 8-32 X 1/2 (Replaces: 488197) |
|
$ 20.00 | |||||
| 7 | 1108064 | Dampener |
|
- | |||||
| 8 | 1103820 | Muffler |
|
- | |||||
| 9 | 1105015 | Cover, Terminal (used W/original Compressor) |
|
- | |||||
| 10 | 1108074 | Capacitor (used W/original Compressor) |
|
- | |||||
| 11 | 1105075 | Overload (used W/original Compressor) |
|
- | |||||
| 12 | 938384 | Strap, Cover (used W/original Compressor) |
|
- | |||||
| 14 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.01 | |||||
| 15 | 489340 | Screw, 5/16-18 X 5/8 (2) (Replaces: 488683) |
|
- | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 18 | WP43449 | Clamp, Capacitor (Replaces: 1108137) |
|
$ 5.84 | |||||
| 19 | WP4387499 | Defrost, Bi-metal (Replaces: 1100435) |
|
$ 114.21 | |||||
| 20 | 510721 | Condenser Bracket (2) |
|
- | |||||
| 21 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 13.25 | |||||
| 23 | 513584 | Clamp |
|
- | |||||
| 24 | 1100424 | Evaporator |
|
- | |||||
| 25 | 935788 | Clip, Condenser Mounting (2) |
|
- | |||||
| 26 | 510446 | Restrictor Sleeve |
|
- | |||||
| 27 | 1100806 | Relay (used W/original Compressor) |
|
- | |||||
| 28 | 482981 | Compressor (includes Items 43, 44, 45, 46, 47, 52, & 53) (also Order 876765 Tube Kit) |
|
- | |||||
| 29 | W10843121 | Drier (Replaces: 850037) |
|
Immediately | $ 51.42 | ||||
| 30 | 547637 | Clamp |
|
- | |||||
| 31 | 942860 | Plate, Unit Mounting |
|
- | |||||
| 32 | 1100434 | Heater, Defrost |
|
- | |||||
| 33 | 851358 | Support, Heater |
|
- | |||||
| 34 | 935781 | Tray, Evaporator |
|
- | |||||
| 35 | 285002 | Locknut (Replaces: 489153) |
|
$ 11.57 | |||||
| 36 | 1100429 | Heat Exchanger |
|
- | |||||
| 37 | 938275 | Spacer |
|
- | |||||
| 38 | 1108078 | Junction Box |
|
- | |||||
| 39 | 301774 | Pad, Sound Front (3) |
|
- | |||||
| 40 | 303776 | Screw, 8-32 X .312 (grounding) (Replaces: 488879) |
|
- | |||||
| 41 | 945448 | Rail, Unit Mounting |
|
- | |||||
| 42 | 876811 | Screw, 1/4-28 X 1 (Replaces: 489116) |
|
$ 7.01 | |||||
| 43 | 1100806 | Relay (used W/service Compressor) |
|
- | |||||
| 44 | 1105077 | Overload (used W/service Compressor) |
|
- | |||||
| 45 | 1105015 | Cover, Terminal (used On Service Compressor) |
|
- | |||||
| 46 | 938384 | Strap, Cover (used W/service & Original Compressor) |
|
- | |||||
| 47 | 482996 | Capacitor (used W/service Compressor) |
|
- | |||||
| 48 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 49 | WP965173 | Screw (Replaces: 487248) |
|
Immediately | $ 10.68 | ||||
| 51 | 1108064 | Dampener |
|
- | |||||
| 52 | 489142 | Nut (used W/service Compressor) |
|
- | |||||
| 53 | 489143 | Washer (used W/service Compressor) |
|
- | |||||
| 54 | 849689 | Heat, Probe |
|
- | |||||
| 55 | 482278 | Start Kit |
|
- | |||||
| 55 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 55 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 55 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| 55 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 55 | WP681414 | Screw (Replaces: 488552) |
|
Immediately | $ 7.62 | ||||
| 55 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 55 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 55 | 978028 | Valve, Access (1/2) |
|
- |
