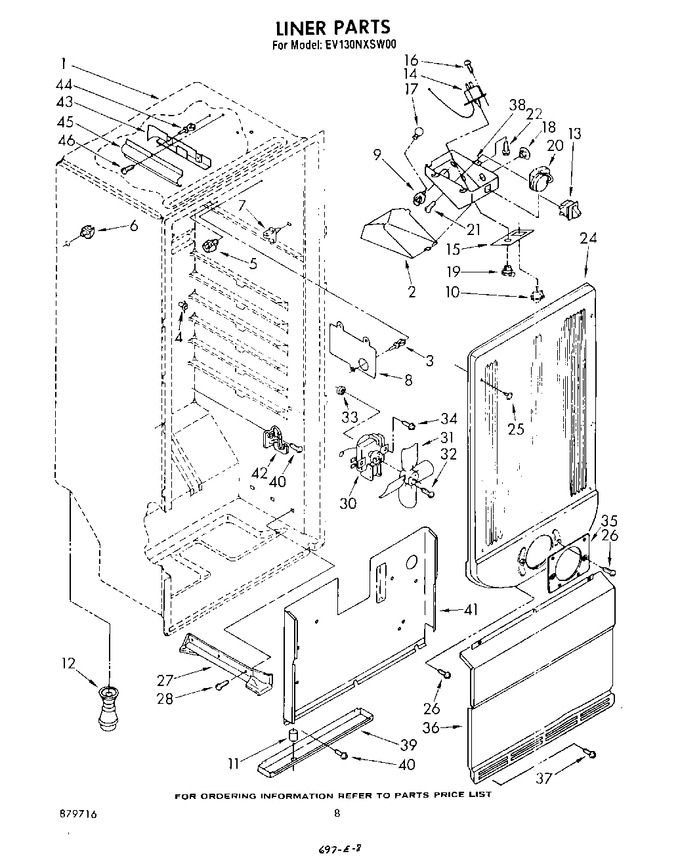

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1100466		Light, Lens		Appelez-nous	-
3	939962		Plastic Rivet (2)				$ 11.18
4	1100445		Spacer (8)		Appelez-nous	-
5	939063		Shelf, Stud Saddle (r.s)		Appelez-nous	-
6	939064		Shelf, Stud Saddle (l.s)		Appelez-nous	-
7	939200		Stud, Shelf (2)		Appelez-nous	-
8	1100464		Shield, Electrical		Appelez-nous	-
9	4387478		Socket   (Replaces: 851067)			Immediately	$ 104.10
10	1100853		Toggle, Switch		Appelez-nous	-
11	836123		Extension, Drain		Appelez-nous	-
12	842256		Fitting, Drain		Appelez-nous	-
13	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 35.18
14	VF3		Thermostat   (Replaces: 1100459)				$ 38.40
15	1100789		Insert, Control Panel		Appelez-nous	-
16	488974		Screw		Appelez-nous	-
17	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 10.17
18	940014		Hole Plug				$ 18.33
19	1100467		Control Knob, Thermostat		Appelez-nous	-
20	W10822278		Defrost, Timer (10 Hours)   (Replaces: 945486)			Immediately	$ 31.00
21	WP487353		Screw, 6-20 X 1/2 (2)   (Replaces: 488693)				$ 7.16
22	WP489069		Screw, 8 X 1/2   (Replaces: 488874)			Immediately	$ 7.56
24	1110532		Air Duct		Appelez-nous	-
25	489115		Snap, Fastener				$ 5.51
26	W11693756		Screw   (Replaces: 487042)			Immediately	$ 13.28
27	941776		Tube Entry Cover (bottom)		Appelez-nous	-
28	W11693756		Screw, 8-15 X 5/8 (4)   (Replaces: 487042)			Immediately	$ 13.28
30	1106739		Motor, Fan		Appelez-nous	-
31	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 83.03
32	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 220.32
33	531933		Grommet (2)				$ 5.70
34	489168		Screw, 8 X 15/16 (2)		Appelez-nous	-
35	1108194		Fan, Mounting Cover		Appelez-nous	-
36	1100476		Evaporator, Cover		Appelez-nous	-
37	WP488729		Screw, 8-15 X 1/2 (2)   (Replaces: 488992)			Immediately	$ 7.45
38	1100458		Control Box		Appelez-nous	-
39	1100471		Pan, Drain		Appelez-nous	-
40	W11624204		Screw, 8 X 1/2 (3)   (Replaces: 486194)				$ 13.25
41	1100470		Shield, Heat		Appelez-nous	-
42	935700		Evaporator Support (2)		Appelez-nous	-
43	1100469		Wire, Cover (rear)		Appelez-nous	-
44	939961		Plastic, Rivet		Appelez-nous	-
45	1100468		Wire, Cover (front)		Appelez-nous	-
46	486214		Screw 8-15 X 1/2		Appelez-nous	-
