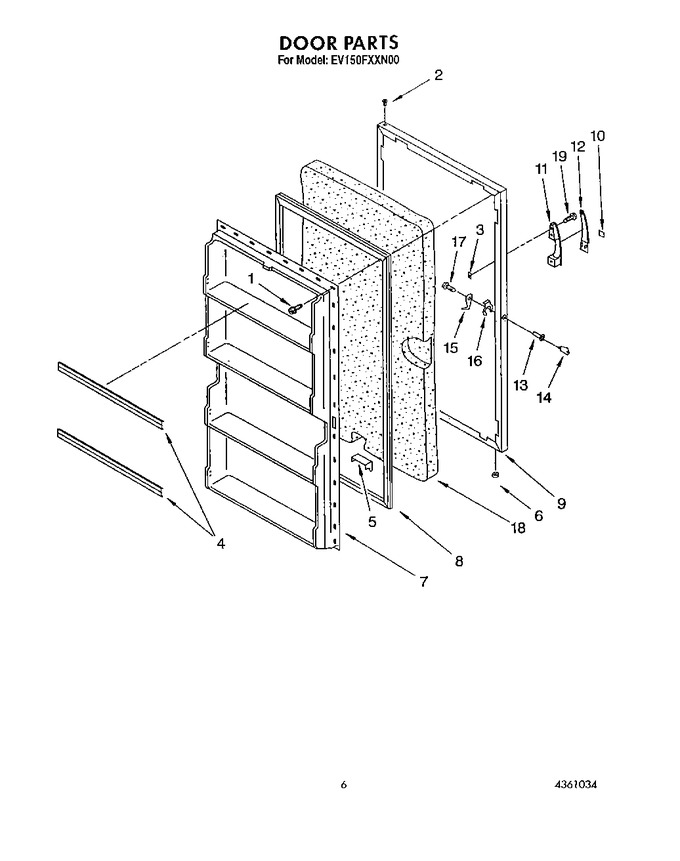

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 4356810)				$ 7.36
2	4356811		Hinge, Bushing		Appelez-nous	-
3	4356812		Anchor, Screw		Appelez-nous	-
4	4356813		Door Shelf Trim (4)		Appelez-nous	-
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 10.21
7	WP4390870		Interior Door   (Replaces: 4356814)				$ 250.88
8	WP4357099		Door Gasket   (Replaces: 4356815)				$ 304.99
9	4356816		Exterior Door (almond)		Appelez-nous	-
10	4356844		Nameplate		Appelez-nous	-
11	4356895		Handle, Chrome		Appelez-nous	-
12	4356896		Handle, Insert (almond)		Appelez-nous	-
13	4357145		Lock, Body   (Replaces: 4356839)				$ 25.01
14	WP4356840		Key   (Replaces: 4356840)				$ 10.15
15	3-35284-001		Lock, Bolt   (Replaces: 4356841)				$ 25.64
16	4356842		Spring, Clip Mounting				$ 12.24
17	WP489478		Screw, Lock Bolt   (Replaces: 4356843)				$ 7.36
18	876370		Fiberglass Insulation				$ 218.83
19	488839		Screw Handle Lower		Appelez-nous	-
19	302717		Screw, Handle Top		Appelez-nous	-
