SELECT A DIAGRAM

02 - Door , Lit/optional


03 - Cabinet


04 - Liner


05 - Unit


06 - Shelf

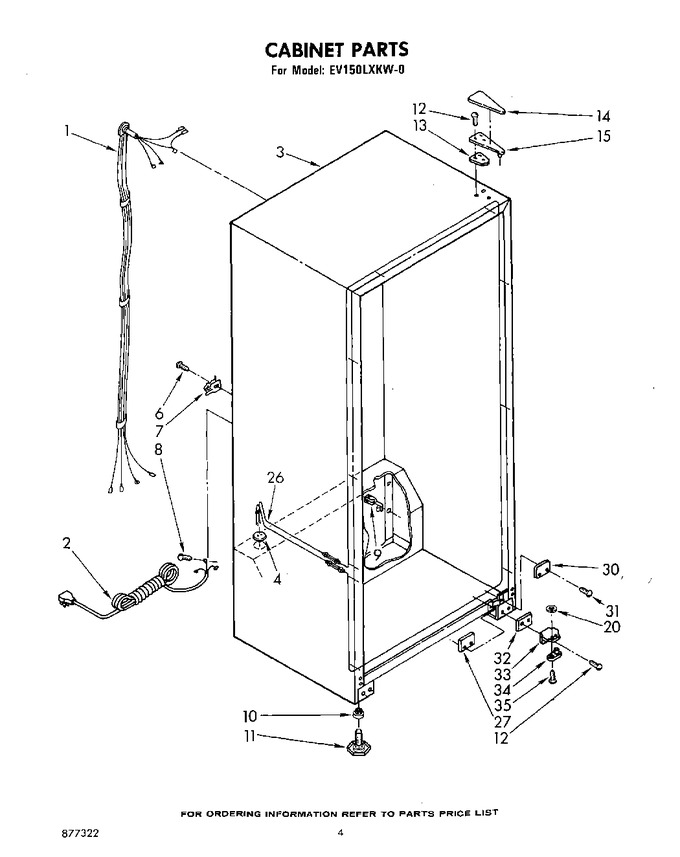

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	941543		Cabinet Wiring Assembly		Appelez-nous	-
2	850626		Cord, Service		Appelez-nous	-
3	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
4	940172		Grommet, Wiring		Appelez-nous	-
6	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
7	939009		Clamp		Appelez-nous	-
8	488474		Screw, 8-32 X 3/8		Appelez-nous	-
9	544108		Bushing, Strain Relief		Appelez-nous	-
10	940113		Grommet (4)		Appelez-nous	-
11	W11117769		Leveler (4)   (Replaces: 939005)			Immediately	$ 17.43
12	488949		Screw (repair)		Appelez-nous	-
12	WP999367		Screw, 10-32 X 3/4   (Replaces: 488948)				$ 7.70
13	836151		Shim, Top Hinge		Appelez-nous	-
14	842010		Hinge Cover (white)		Appelez-nous	-
15	842038		Hinge & Shim (top)		Appelez-nous	-
20	WP487802		Washer, 1/16   (Replaces: 487802)			Immediately	$ 7.32
26	940171		Heater, Stile		Appelez-nous	-
27	935743		Tap Plate		Appelez-nous	-
30	935707		Rail Cover, Tube Entry (white)		Appelez-nous	-
31	488895		Screw		Appelez-nous	-
32	935737		Shim, Bottom Hinge		Appelez-nous	-
33	935735		Butt Hinge (bottom)		Appelez-nous	-
34	654366		Pin, Hinge (bottom)				$ 27.15
35	488714		Screw 10-32 X 5/16				$ 5.48

    View Diagram in Separate Window       Print Part List
