01 - Cabinet Parts

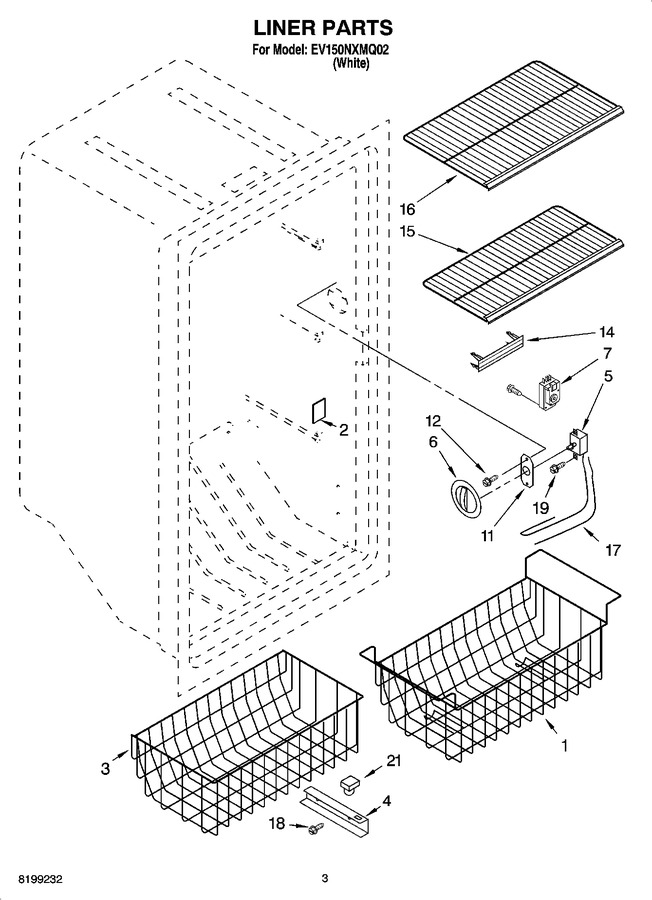

02 - Liner Parts
03 - Door Parts
04 - Unit Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390621 | Basket |
|
- | |||||
| 2 | 1-60123-001 | Cover, Icemaker Hole (Replaces: 4390649) |
|
$ 72.08 | |||||
| 3 | 4390818 | Basket, Middle |
|
- | |||||
| 4 | 4390820 | Rail, Basket (left) |
|
$ 77.44 | |||||
| 4 | 4390819 | Rail, Basket (right) |
|
- | |||||
| 5 | WP4-83053-003 | Thermostat (Replaces: 4390631) |
|
$ 229.46 | |||||
| 6 | 4390619 | Knob, Thermostat |
|
- | |||||
| 7 | WP3-81329 | Timer, Defrost (Replaces: 4357124) |
|
Immediately | $ 179.23 | ||||
| 11 | 1-81154 | Thermostat, Plate (Replaces: 4357041) |
|
$ 13.50 | |||||
| 12 | WPW10068250 | Screw (Replaces: 4357042) |
|
$ 3.84 | |||||
| 14 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 10.21 | |||||
| 15 | 4-82314-001 | Shelf, Middle (Replaces: 4357172) |
|
$ 120.63 | |||||
| 16 | 4-82315-001 | Shelf, Top (Replaces: 4357171) |
|
$ 317.21 | |||||
| 17 | WP2196003 | Tubing, Thermostat (Replaces: 8210246) |
|
$ 7.52 | |||||
| 18 | 4390822 | Screw (1 1/2``) |
|
- | |||||
| 18 | WP489491 | Screw (5/8``) (Replaces: 4390821) |
|
$ 6.57 | |||||
| 19 | W11233072 | Screw (Replaces: 4357043) |
|
Immediately | $ 13.25 | ||||
| 21 | 4390823 | Stop, Basket |
|
- |
