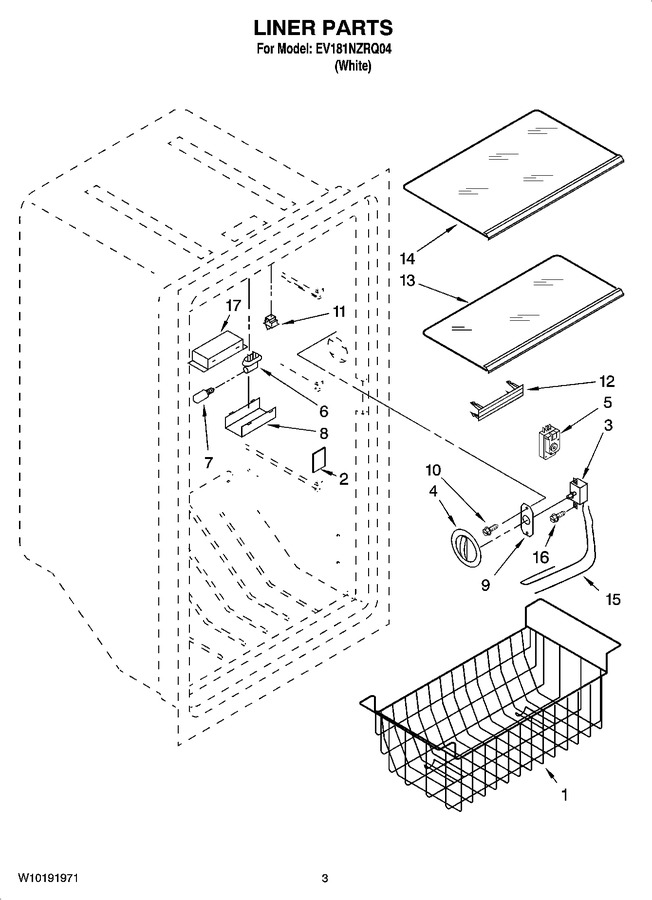

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390621 | Basket |
|
- | |||||
| 2 | 1-60123-001 | Cover, Icemaker Hole (Replaces: 4390649) |
|
$ 72.08 | |||||
| 3 | WP4-83053-003 | Thermostat (Replaces: 8210311) |
|
$ 229.46 | |||||
| 4 | 4390619 | Knob, Thermostat |
|
- | |||||
| 5 | WP3-81329 | Timer, Defrost (Replaces: 4357124) |
|
Immediately | $ 179.23 | ||||
| 6 | WP3-82393-001 | Socket, Light (Replaces: 8210350) |
|
$ 101.46 | |||||
| 7 | W11679940 | Bulb, Light (Replaces: 4390465) |
|
Immediately | $ 10.17 | ||||
| 8 | 4390743 | Light Shield |
|
- | |||||
| 9 | 1-81154 | Thermostat, Plate (Replaces: 4357041) |
|
$ 13.50 | |||||
| 10 | W11233072 | Screw (Replaces: 4357043) |
|
Immediately | $ 13.25 | ||||
| 11 | W11384469 | Light, Switch (Replaces: 4390513) |
|
Immediately | $ 35.18 | ||||
| 12 | WP3-80414-103 | Vent Plug (Replaces: 4357295) |
|
$ 12.15 | |||||
| 13 | 4390817 | Shelf, Middle (2) |
|
$ 113.01 | |||||
| 14 | 4390816 | Shelf, Top (2) |
|
- | |||||
| 15 | WP2196003 | Tubing, Thermostat (Replaces: 4356800) |
|
$ 7.52 | |||||
| 16 | W11233072 | Screw (Replaces: 4357043) |
|
Immediately | $ 13.25 | ||||
| 17 | 4390744 | Bracket, Light |
|
- |
